Siemens

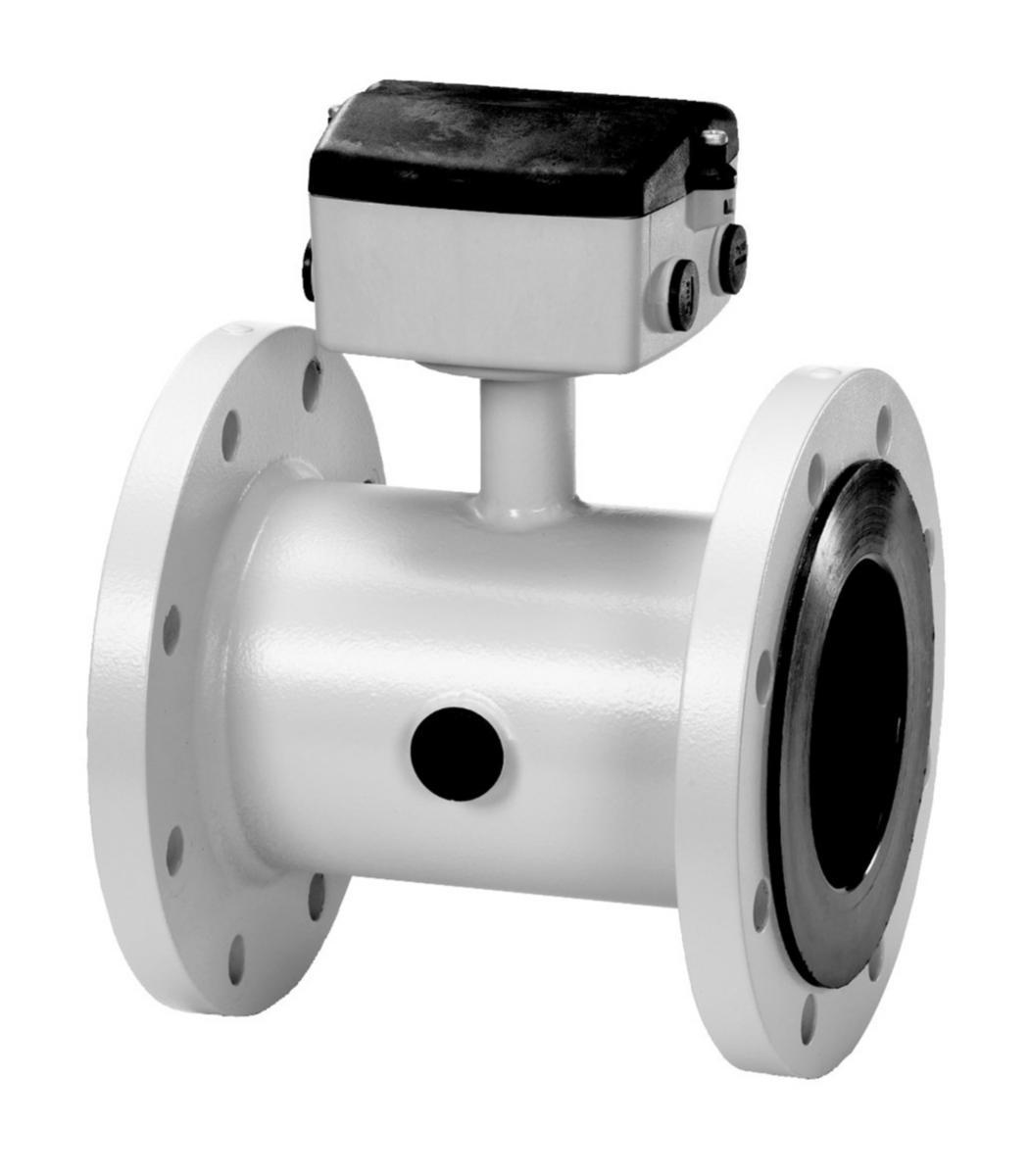

Flowmeter MAG5100W carbon steel NBR, Siemens
ELECTROMAGNETIC FLOW SENSOR DN100.PN16.NBR MAG 5100W
Article number: Suppl. article no:
5182188
7ME6520-3TC13-2AA1
to see price and stock
SITRANS FM measuring tube MAG5100W EN 1092-1 flange in carbon steel ASTM A105. Liner material: NBR hard rubber. Electrode material: Hastelloy C-276. Media temperature -10...+70ºC.
- Article number: 5182188
- Suppl. article no: 7ME6520-3TC13-2AA1
- Ean no: 4019169848268
- Material class PIU150
Technical data
- Connection: Flange
- Nominal diameter: DN 100
- Flange compression class: PN 16
- Width: 250 mm
- Explosion safety: None
- Measuring pipe lining: NBR (nitrile rubber)
- Degree of protection (IP): IP67
- Housing material: Steel
- Surface protection: Other
- REACH Date: 2022-03-21
- REACH Information obligation: No
