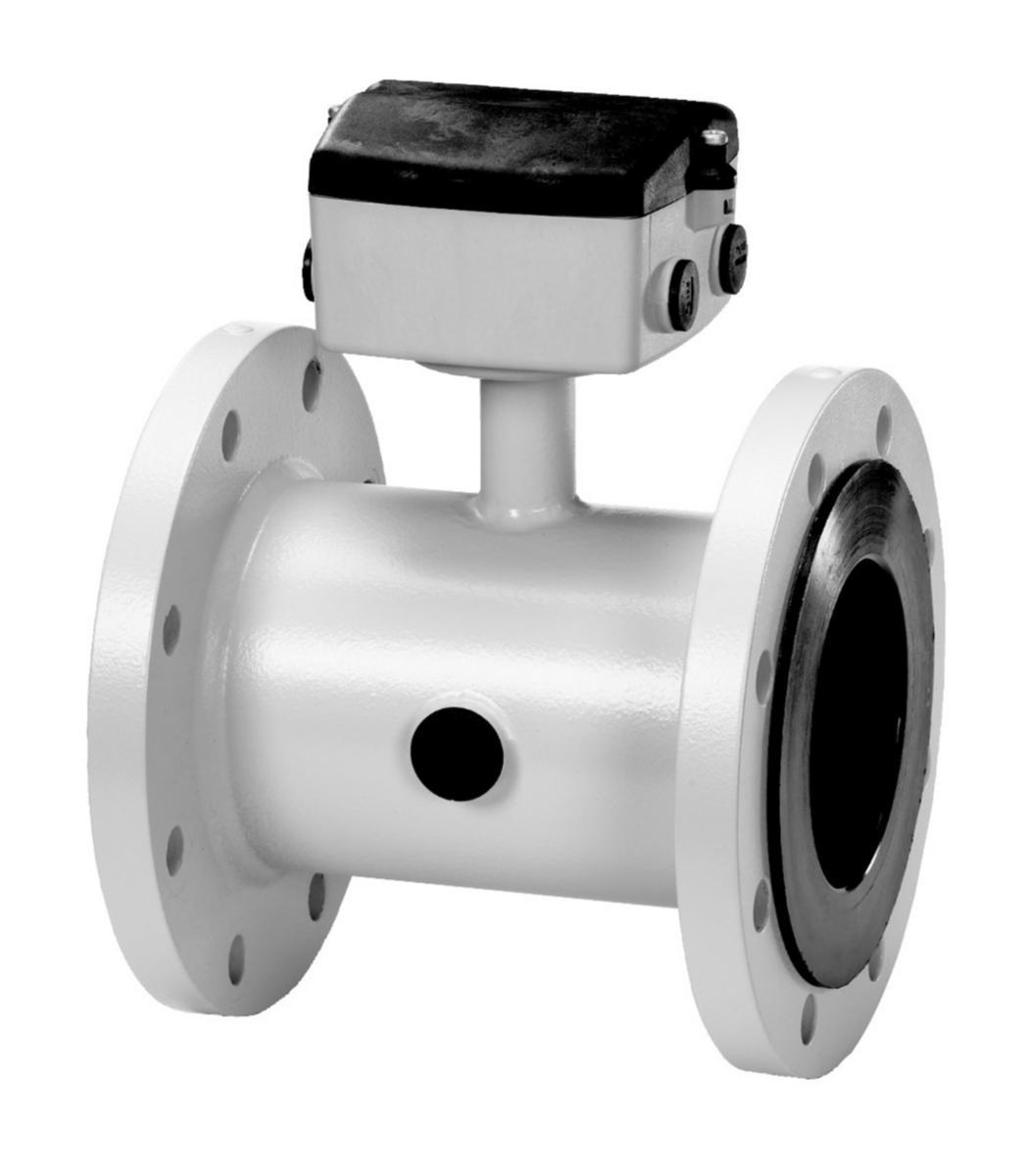

Flowmeter MAG5100W carbon steel NBR, Siemens
ELECTROMAGNETIC FLOW SENSOR DN80.PN16.NBR MAG 5100W
Article number: Suppl. article no:
5182187
7ME6520-3MC13-2AA1
to see price and stock
SITRANS FM measuring tube MAG5100W EN 1092-1 flange in carbon steel ASTM A105. Liner material: NBR hard rubber. Electrode material: Hastelloy C-276. Media temperature -10...+70ºC.
- Article number: 5182187
- Suppl. article no: 7ME6520-3MC13-2AA1
- Ean no: 4019169848244
- Material class PIU150
Technical data
- Connection: Flange
- Nominal diameter: DN 80
- Flange compression class: PN 16
- Width: 200 mm
- Explosion safety: None
- Measuring pipe lining: NBR (nitrile rubber)
- Degree of protection (IP): IP67
- Housing material: Steel
- Surface protection: Other
- REACH Date: 2022-03-21
- REACH Information obligation: No
