Siemens

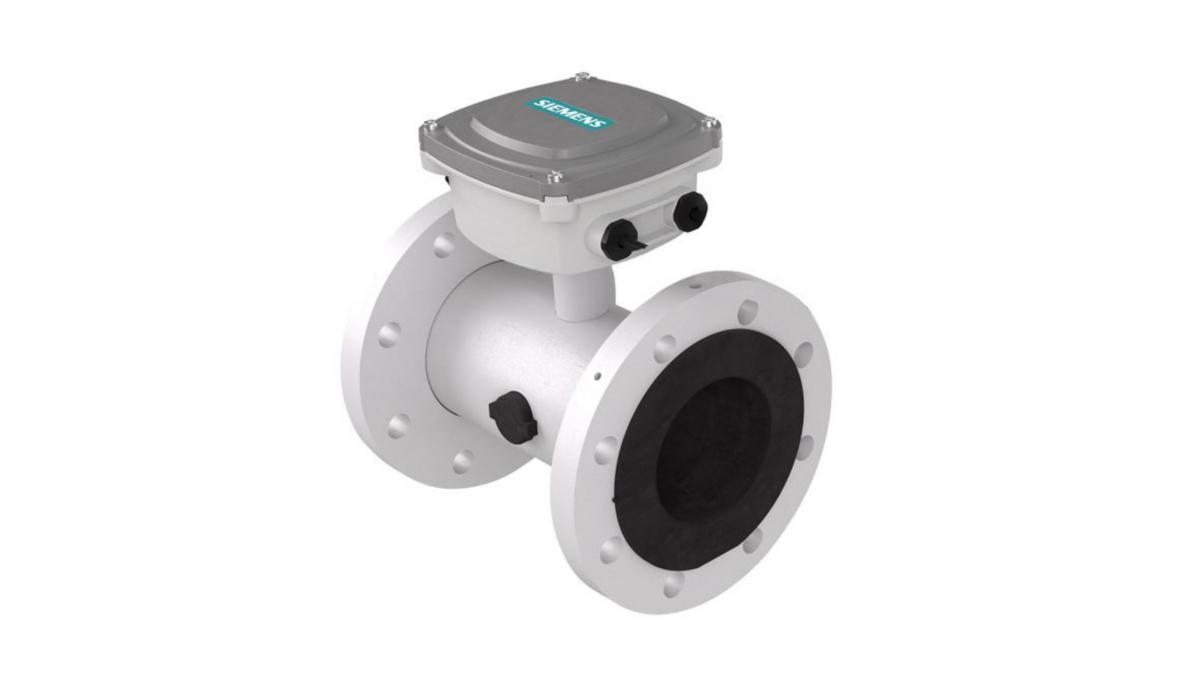

Water meter SITRANS FMS500 EPDM lining, Siemens
SIEMENS FLOW MEASUREMENT DN50 SITRANS FMS500 PN16 EPDM
Article number: Suppl. article no:
5144337
7ME6530-2YC02-1AA0-Z
to see price and stock
SITRANS FMS500 measuring tube, EN 1092-1 PN10-40.
Measuring tube & flanges: Carbon steel ASTM A 105 with corrosion-resistant coating according to EN ISO 12944 category C4
Liner material: EPDM, Media temperature -10...+70ºC.
Electrode material: Hastelloy C276 / 2.4819
Excl. transmitter
Measuring tube & flanges: Carbon steel ASTM A 105 with corrosion-resistant coating according to EN ISO 12944 category C4
Liner material: EPDM, Media temperature -10...+70ºC.
Electrode material: Hastelloy C276 / 2.4819
Excl. transmitter
- Article number: 5144337
- Suppl. article no: 7ME6530-2YC02-1AA0-Z
- Material class PIU150
Technical data
- Connection: Flange
- Nominal diameter: DN 50
- Flange compression class: PN 16
- Measuring pipe lining: Ethylene-propylene diene monomer rubber (EPDM)
- Construction length: 200 mm
- REACH Date: 2024-01-31
- REACH Information obligation: No
