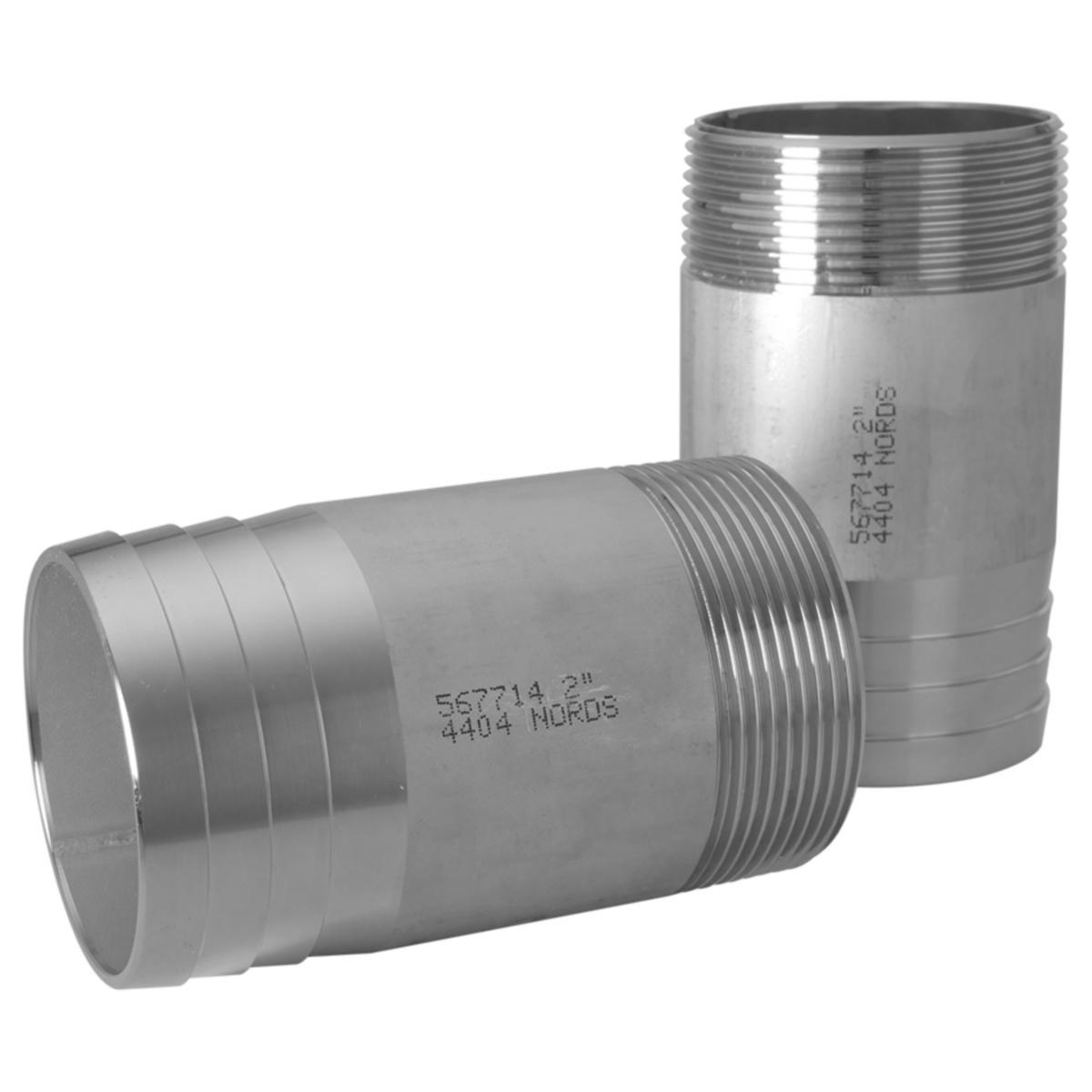

Hose nipple - Round stainless steel, R-142, EN 1.4404
50 HOSE NIPPLE R-242 SS 2343 AISI 316
Article number: Suppl. article no:
1248122
11-0142-09
to see price and stock
If a certificate is required it must be requested whilst ordering.
- Article number: 1248122
- Suppl. article no: 11-0142-09
- Replaces art.nbr: 1453139
- Material class PJG430
Technical data
- Packagin Size: 1 PCS/25 PCS
- Nominal diameter connection 1: 2 inch (50)
- Outer pipe diameter connection 1: 60.3 mm
- Outer pipe diameter connection 2: 60.0 mm
- Length: 100 mm
- Max. operating pressure at 20 °C: 64 bar
- Connection 1: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Connection 2: Hose pillar
- Shape: Straight
- Reducing: No
- Material connection 2: Stainless steel
- Material connection 1: Stainless steel
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Eccentric: No
- Weight: 0.41 kg
