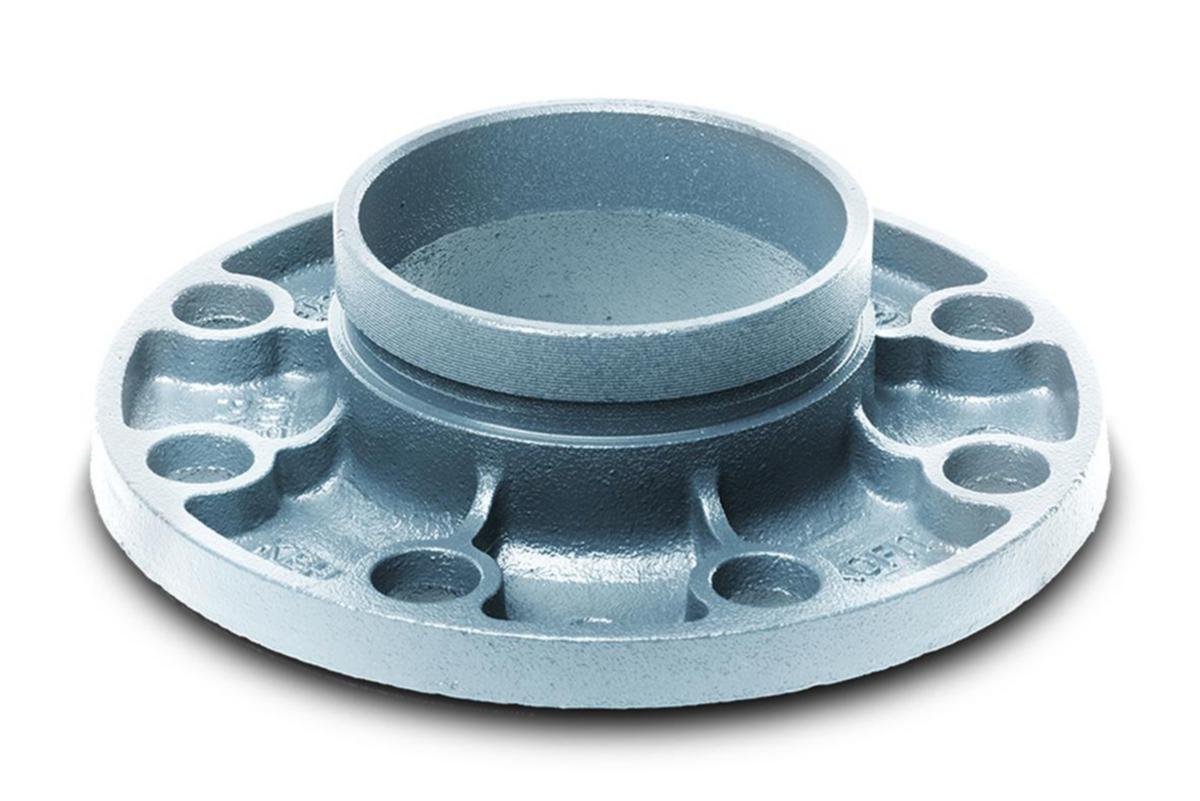

Grooved flange adapter, Galvanized
Grooved galv. flange adapter DN150-PN16
Article number: Suppl. article no:
1654062V
GAF16G6
to see price and stock
Grooved flange (GAF)
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The worn flange can withstand up to 20.7 bar maximum working pressure.
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The worn flange can withstand up to 20.7 bar maximum working pressure.
- Article number: 1654062V
- Suppl. article no: GAF16G6
- Ean no: 7333123073396
- Replaces art.nbr: 1348605
- Material class PJB480
Technical data
- Packagin Size: 1 PCS/4 PCS/96 PCS
- Nominal diameter: DN 150
- Pitch circle: 240 mm
- Pipe diameter: 168.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight: 4.65 kg
- Diameter bolt hole: 21 mm
- Number of bolt holes: 8
- Material: Steel
- Flange compression class: PN 16
- Outer diameter of flange: 285 mm
- Surface protection: Hot-dip galvanised
