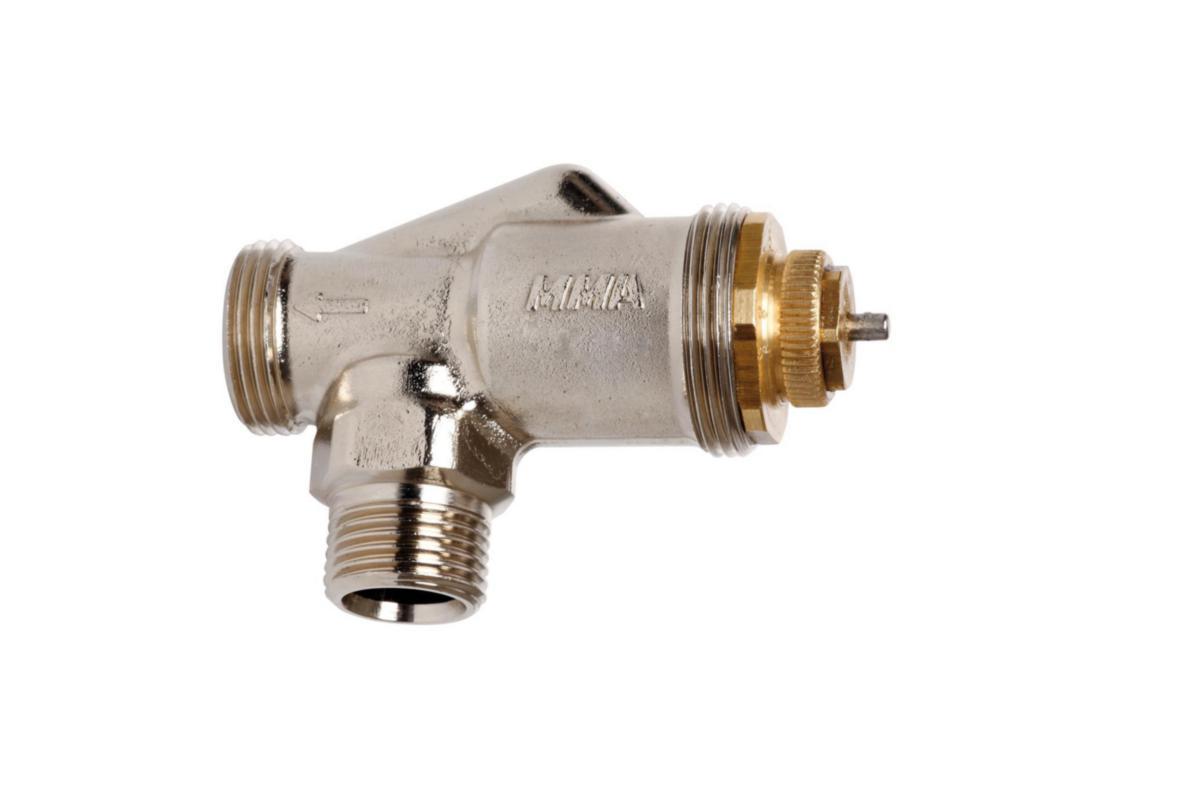

Replacement valve ANVD, Purmo
REFURBISHMENT VALVE ANVD
Article number: Suppl. article no:
4805335
FDJV50010ACAVDSE0
to see price and stock
Replacement valve for Danfoss low flow coupling. Kv 0.01-0.4
- Article number: 4805335
- Suppl. article no: FDJV50010ACAVDSE0
- Material class PEA110
Technical data
- Packagin Size: 1 PCS/30 PCS
- Size of radiator connection: 3/8 inch (10)
- Model: Tailpiece/external thread
- Shape: Straight
- Size of pipe connection: 3/8 inch (10)
- Thermostatically prepared: Yes
- Size of thermostatic adjustment element connection: M28 x 1.5
- Shortened construction length: No
- Can be preset: Yes
- Suitable for single pipe system: Yes
- Suitable for two pipe system: Yes
- Length of connection 1: 29 mm
- Housing material: Bronze
- Surface protection: Untreated
- With bent tailpiece: No
- Presetting: With valve guard
- Reverse direction of flow: No
- Operation: Thermostatic without button
- With dust cap: Yes
- Kv value: 0.02-0.82
- Kvs value: 0.82
- With compression set: No
- Automatic flow control: No
- Colour button: White
- Height: 0 mm
- Throughflow capacity (min. 10 kPa): 6-250 l/h
- Throughflow capacity (min. 15 kPa): 7.5-300 l/h
- With straight tailpiece: No
- Length of connection 2: 29 mm
- Kv 2 value: 0.4
- Working length connection 1: 10 mm
- Working length connection 2: 6 mm
- Pipe diameter compression set: 10 mm
