Danfoss

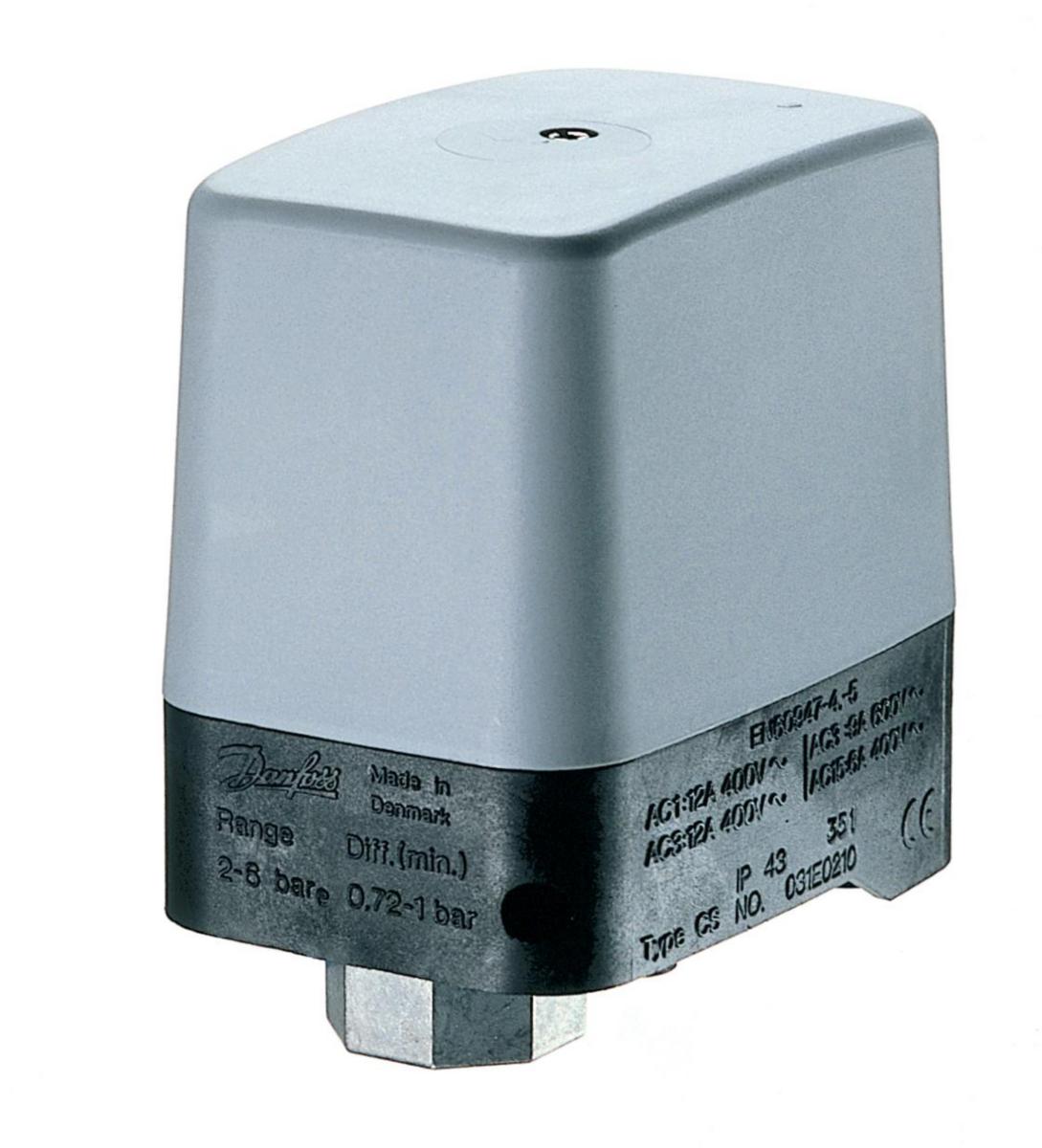

Pressure switch CS, Danfoss
CS 2-6 BAR PRESSURE SWITCH DANFOSS 031E0215
Article number: Suppl. article no:
6007869
031E021566
to see price and stock
Push switch CS, CE certified with switch manual/automatic 3-pole.
- Article number: 6007869
- Suppl. article no: 031E021566
- Ean no: 5702423208685
- Material class PHR140
Technical data
- Packagin Size: 1 ST/30 ST
- Connection: Internal thread cylindrical BSPP-G (ISO 228-1)
- Width: 107 mm
- Depth: 66 mm
- Electronic version: No
- Explosion-proof: No
- Thread size: 1/2 inch
- Height: 105 mm
- Engaging pressure: 2-6 bar
- Suitable as limiter: Yes
- Suitable as 2-point controller: Yes
- Suitable as guard: Yes
- Max. test pressure: 10 bar
- With display: No
- With manual on/off switch: No
- Medium temperature: 0-70 °C
- Rated voltage Ue at AC 50 Hz: 220-415 V
- Degree of protection (IP): IP55
- Type of electric connection: Screw connection
- Max. operating pressure: 10000 hPa
- Number of normally open contacts as main contact: 1
- REACH Date: 2024-02-28
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
