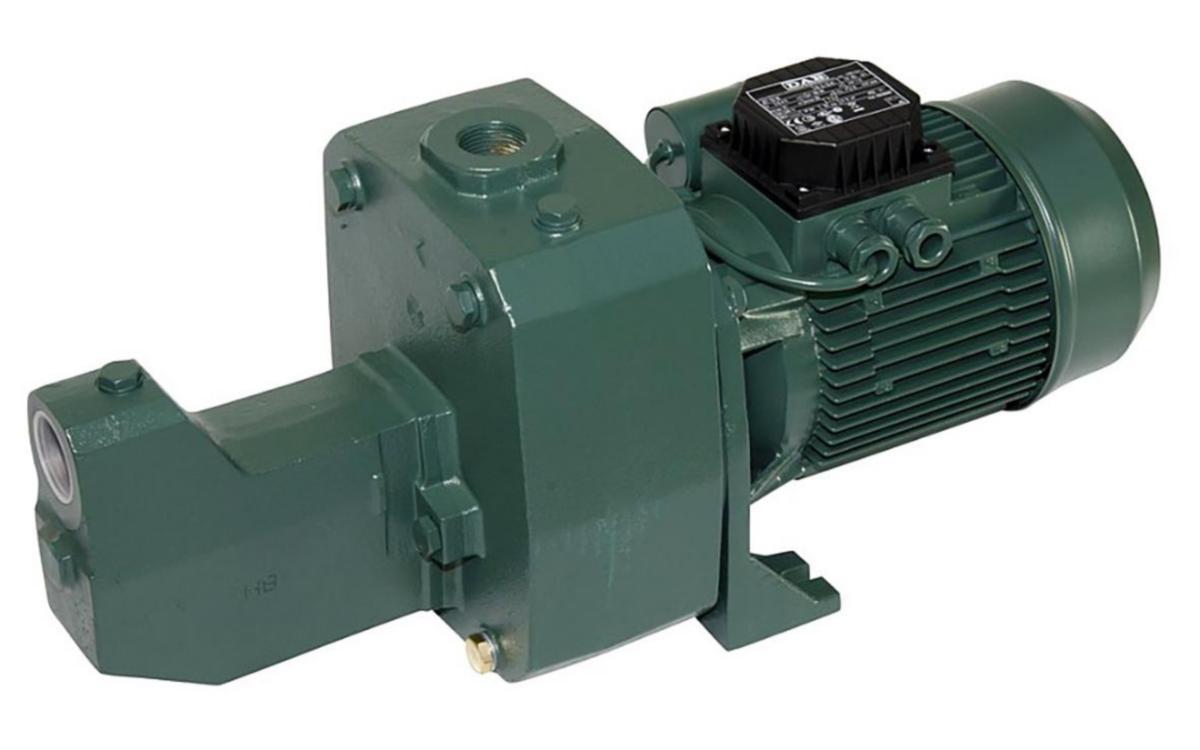

Jet Pump Cast Iron, Beulco
JET 45/50T MONOBLOCK 1.1kW 3-FAS (151T)
Article number: Suppl. article no:
5950621
0630022000
to see price and stock
Self-suction jet pump with threaded connectors. The pump is equipped with single-phase or three-phase motor. The single-phase motor is equipped with thermal motor protection. The three-phase motor must be connected to appropriate motor protection.
- Article number: 5950621
- Suppl. article no: 0630022000
- Ean no: 7393113300222
- Material class PHE100
Technical data
- Packagin Size: 1 ST/6 ST
- Insulation class according to IEC: F
- Nominal current: 3 A
- Connection inlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection inlet side: DN 32
- Nominal diameter connection outlet side: DN 25
- Number of phases: 3
- Motor power output (P2) per motor: 1.1 kW
- Frequency: 50 Hz
- Type of drive: Electrical
- Degree of protection (IP): IP44
- Material impeller/pump wheel: Other
- Material pump casing: Cast iron
- Material quality impeller/pump wheel: Other
- Max. operating pressure: 8 bar
- Max. discharge flow: 4.8 m³/h
- Max. static height: 51 m
- Pump length: 380 mm
- Medium temperature (continuous): 0-35 °C
- Rated voltage: 230-400 V
- Ambient temperature: 0-40 °C
- Forced motor cooling: No
- Electrical connection: Terminals
- Interface Pulse Width Modulation (PWM): No
- Interface pulse counter: No
- Interface signal 0-10 V / 2-10 V: No
- Interface signal 0-20 mA / 4-20 mA: No
- Communication: None
- With communication interface RS-232: No
- With communication interface RS-485: No
- Volume flow rate (BEP): 4.8 m³/h
- Potential free switch contact: No
- Interface PT100 / PT1000 / PTC: No
- Mobile communication standard 5G: No
- Radio standard WLAN 802.11: No
- Supporting protocol for BACnet IP: No
- Supporting protocol for BACnet MS/TP: No
- Supporting protocol for CAN/CANOpen: No
- Supporting protocol for EtherNet/IP: No
- Radio standard Bluetooth: No
- Supporting protocol for KNX: No
- Supporting protocol for LIN Bus: No
- Supporting protocol for LON/LONWorks: No
- Supporting protocol for Modbus RTU: No
- Supporting protocol for Modbus TCP: No
- Supporting protocol for PROFIBUS: No
- Supporting protocol for PROFINET IO: No
- Discharge head at flow rate (BEP): 620 kPa
- Flange compression stage connection inlet side: PN 9
- Height of suction end: 144 mm
- Outer pipe diameter connection inlet side: 32 mm
- Outer pipe diameter connection outlet side: 32 mm
- Cable length: 0 m
- Mobile communications standard 2G (GSM): No
- Mobile communication standard 4G (LTE): No
- REACH Date: 2025-03-27
- REACH Information obligation: No
