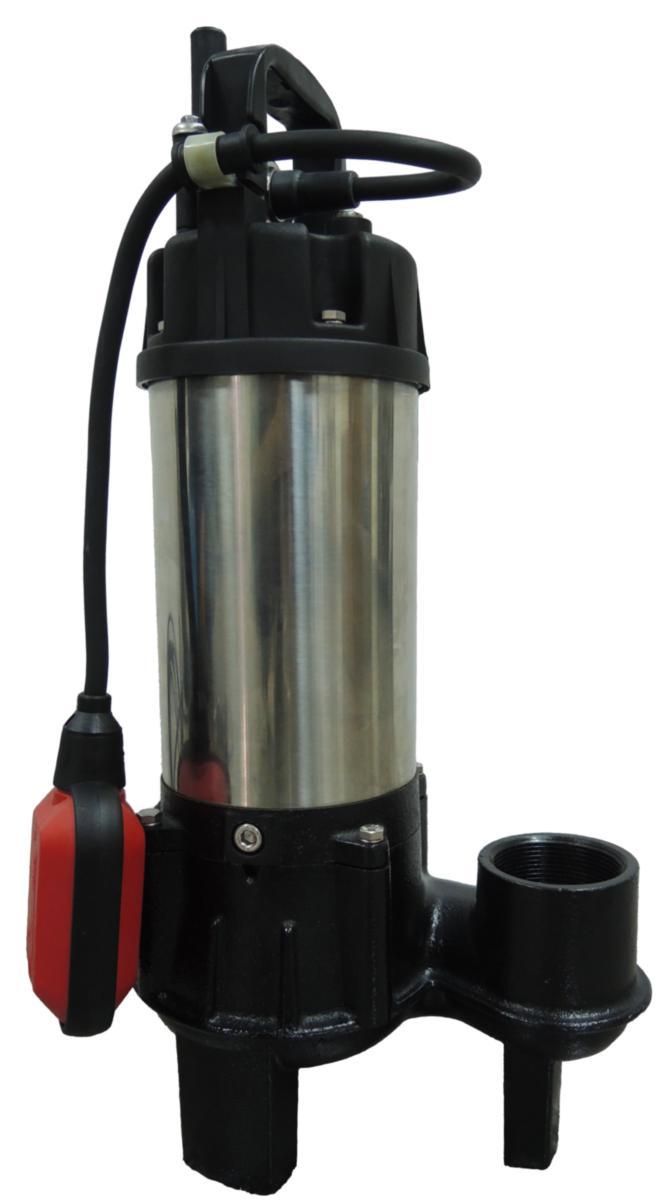

Wastewater pump with level toggle, a-collection
SUBMERSIBLE PUMP EVAK 2"FULL-PASSAGE
Article number: Suppl. article no:
5880171
5880171
to see price and stock
- Article number: 5880171
- Suppl. article no: 5880171
- Ean no: 7333123055309
- Material class PHI900
Technical data
- Packagin Size: 1 ST/50 ST
- Insulation class according to IEC: B
- Motor power input (P1) per motor: 0.37 kW
- Nominal current: 4.2 A
- Pump height: 466 mm
- Pump circuit: With cast-on float
- Rotational speed: 2850 1/min
- Max. dimension of fixed parts: 50 mm
- Electrical connection: Connection cable with plug
- Weight: 15 kg
- Pump diameter: 400 mm
- Degree of protection (IP): IP68
- Material pump casing: Stainless steel
- Material motor housing: Stainless steel
- Material quality motor housing: Stainless steel 304 (1.4301)
- Material quality pump casing: Stainless steel 304 (1.4301)
- Max. static height: 8 m
- Number of phases: 1
- Rated voltage: 220-230 V
- Ambient temperature: 0-40 °C
- Medium temperature (continuous): 2-60 °C
- Nominal diameter connection outlet side: 2 inch (50)
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- With cutting system: No
- Max. operating pressure: 5 bar
- Suitable for dry set-up: No
- Explosion-proof: No
- Cable length: 10 m
- With protection against dry running: No
