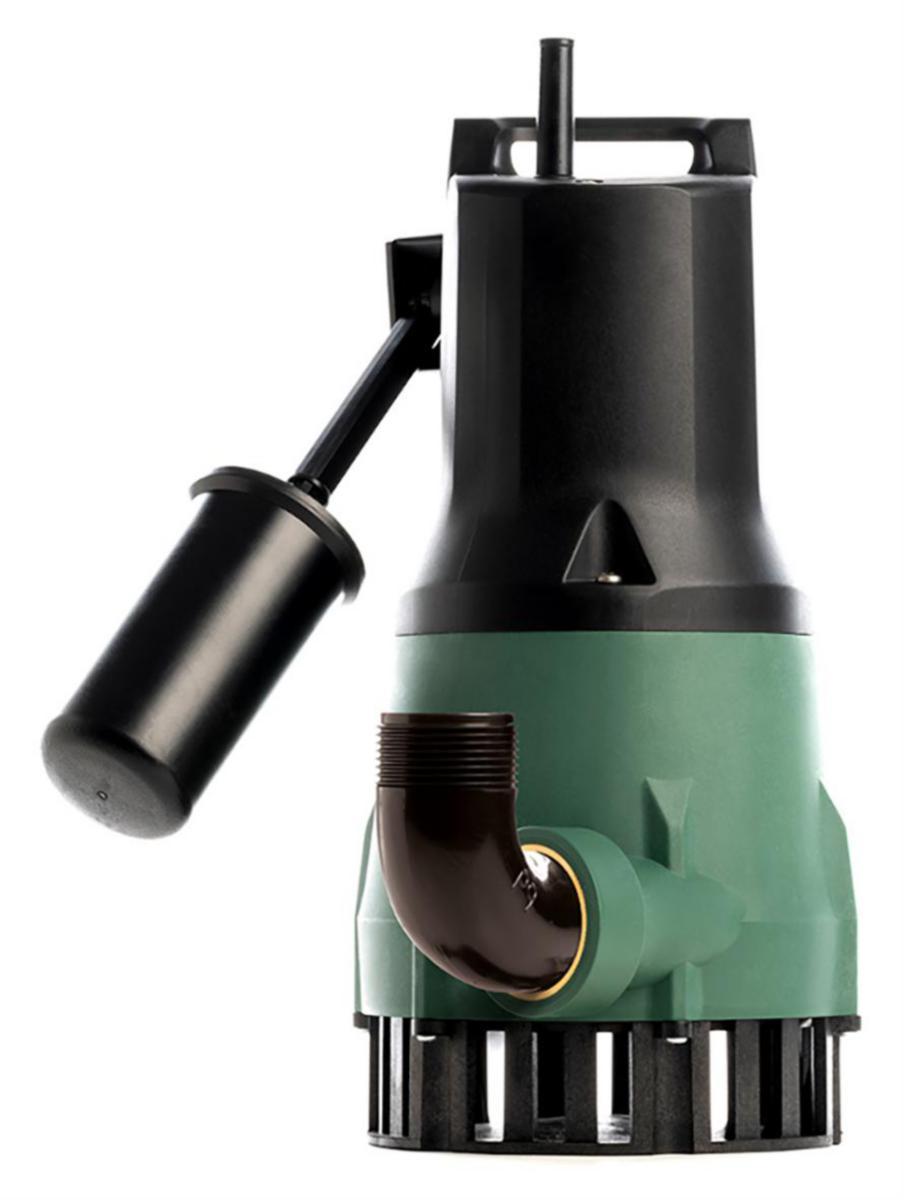

Bilge Pump Nova 300, Beulco
NOVA 300 BILGE PUMP SUBMERSIBL AUTOMATICALLY
Article number: Suppl. article no:
5885512
0633013000
to see price and stock
For drain water.
- Article number: 5885512
- Suppl. article no: 0633013000
- Ean no: 7393113330137
- Material class PHI100
Technical data
- Packagin Size: 1 ST/16 ST
- Nominal current: 1.6 A
- Rotational speed: 2900 Rpm
- Pump height: 277 mm
- Pump diameter: 180 mm
- Electrical connection: Connection cable with plug
- Pump circuit: With external float
- Max. dimension of fixed parts: 10 mm
- Degree of protection (IP): IP68
- Weight: 4.6 kg
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection outlet side: DN 32
- Number of phases: 1
- Motor power output (P2) per motor: 0.22 kW
- Outer pipe diameter connection outlet side: 32 mm
- Frequency: 50 Hz
- Motor power input (P1) per motor: 0.35 kW
- Suitable for dry set-up: No
- Cable length: 5 m
- Material impeller/pump wheel: Other
- Material motor housing: Fibre-reinforced plastic
- Material pump casing: Fibre-reinforced plastic
- Material quality impeller/pump wheel: Other
- Material quality motor housing: Other
- Material quality pump casing: Other
- Max. discharge flow: 12 m³/h
- Max. static height: 7 m
- Medium temperature (continuous): 0-35 °C
- Rated voltage: 1-230 V
- Ambient temperature: 0-40 °C
- With cutting system: No
- Immersing depth: 7 m
- REACH Date: 2025-03-27
- REACH Information obligation: No
