Pump station package Compit 901P-EP, Flygt
C-901P-EP-AXL-DXGM 25-11
Article number: Suppl. article no:
5887328
00-8444066
to see price and stock

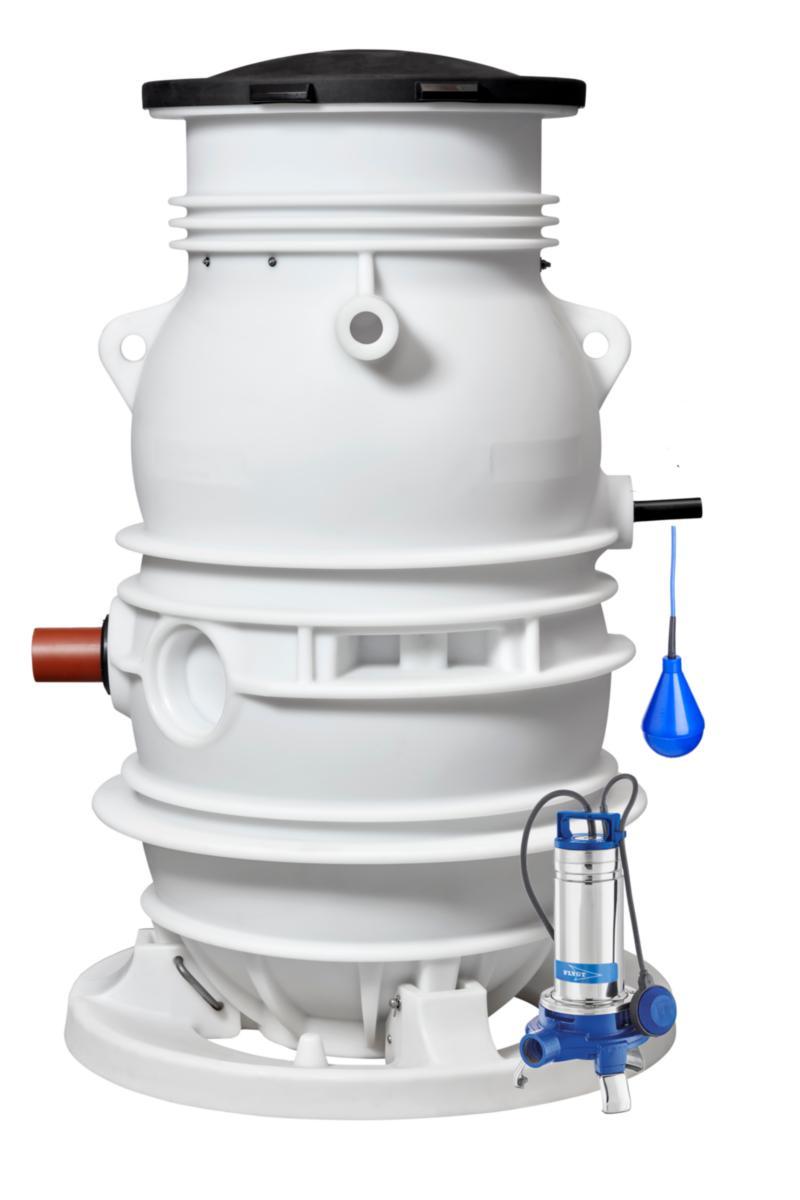

Pump station package Flygt Compit 901P-EP-IEL-MP3069.

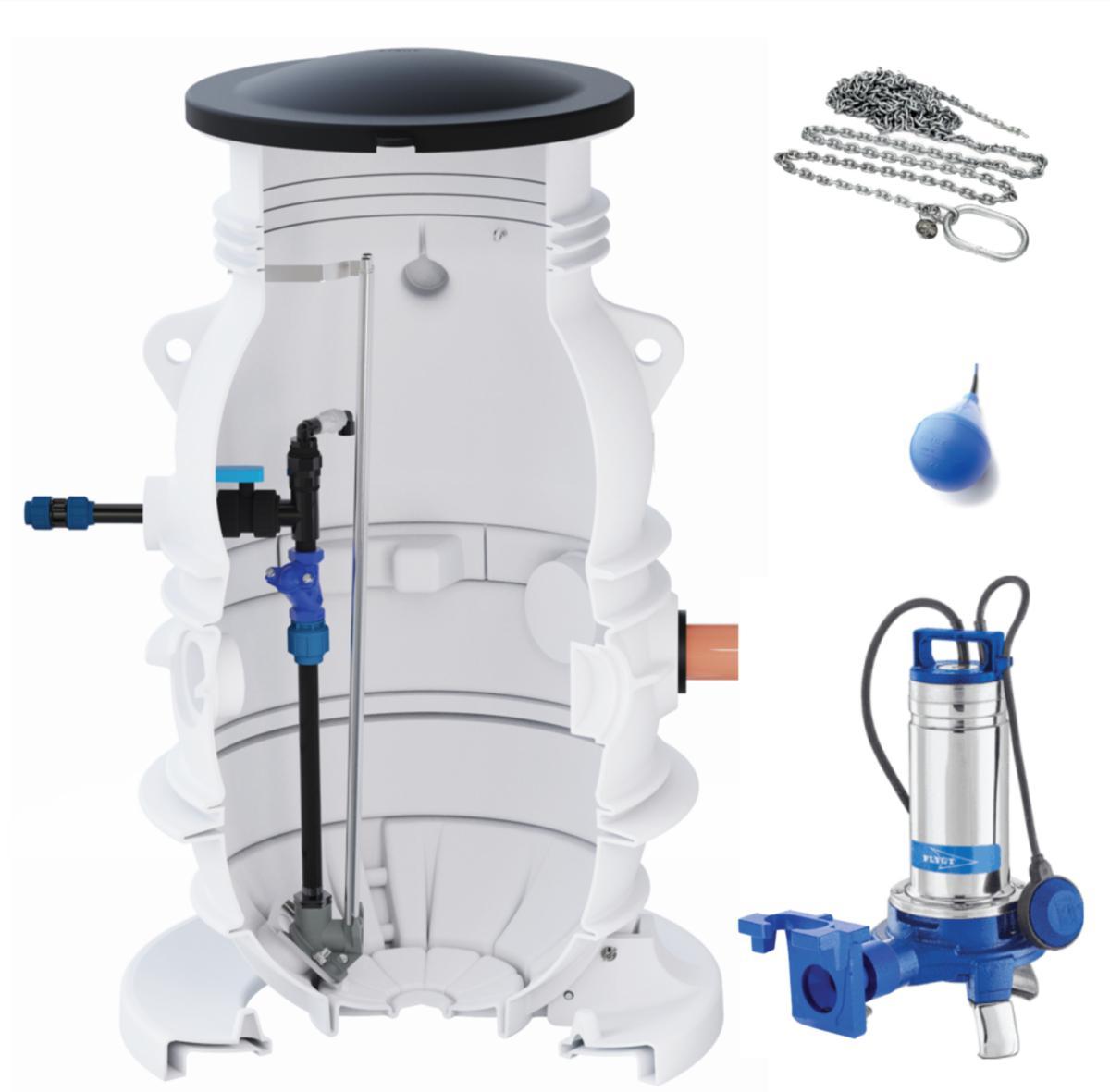

Flygt Compit 901P, is a ready-to-install prefabricated pump station intended for untreated wastewater (wastewater). The pump station is equipped with a bottom-mounted coupling foot and guide pipe system that allows easy pump installation.
The station is made of rotationally molded polyethylene (PE), is 1855 mm high and can be buried 1755 mm below ground. Weight 122 kg (excl. pumps and accessories). Sump volume 320 liters. The pump well is prepared for 4 possible inlet locations (2x Ø160/ 2x Ø110mm). 1pc 110mm rubber seal is included in the standard delivery. Hole saw with dimensions min 102mm/max 108mm is needed for installation of the included rubber nipple. Should d160mm inlet pipe be connected then order rubber nipple 850863 separately (requires hole saw min 152mm/max 158mm). Outlet pipe PEM 40mm (transition coupling to PEM 50mm included in standard delivery)
Flygt Compit 901P, is a ready-to-install prefabricated pump station intended for untreated wastewater (wastewater). The pump station is equipped with a bottom-mounted coupling foot and guide pipe system that allows easy pump installation.
The station is made of rotationally molded polyethylene (PE), is 1855 mm high and can be buried 1755 mm below ground. Weight 122 kg (excl. pumps and accessories). Sump volume 320 liters. The pump well is prepared for 4 possible inlet locations (2x Ø160/ 2x Ø110mm). 1pc 110mm rubber seal is included in the standard delivery. Hole saw with dimensions min 102mm/max 108mm is needed for installation of the included rubber nipple. Should d160mm inlet pipe be connected then order rubber nipple 850863 separately (requires hole saw min 152mm/max 158mm). Outlet pipe PEM 40mm (transition coupling to PEM 50mm included in standard delivery)
- Article number: 5887328
- Suppl. article no: 00-8444066
- Replaces art.nbr: 5884567 5886288
- Material class PHL100
Technical data
- Design: AXL-DXGM2511
- Height: 1855 mm
- Width: 1286 mm
- Depth: 1202 mm
- Nominal diameter connection outlet side: DN 32
- Outer pipe diameter connection outlet side: 40 mm
- Connection inlet side: Other
- Nominal diameter connection inlet side: Other
- Reservoir volume: 320 l
- Suitable for faeces: Yes
- Material pump casing: Cast iron
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Nominal current: 8.5 A
- Set-up behind toilet bowl: No
- Suitable for outdoor installation: Yes
- Frequency: 50 Hz
- Material reservoir: Polyethylene (PE)
- Motor power output (P2) per motor: 1.5 kW
- Number of pumps: 1
- Electrical connection: Cable
- Insulation class according to IEC: B
- With cutting system: Yes
- With de-aeration: Yes
- With alarm function: No
- Alarm output: Yes
- Number of inlet ports: 4
- Degree of protection (IP): IP68
- Max. static height: 25 m
- With non-return valve: Yes
- Connection outlet side: Tube end
- Connection standard inlet side: Other
- Connection standard outlet side: Other
- Number of phases: 1
- Explosion-proof: No
- Cable length: 10 m
- Material impeller/pump wheel: Cast iron
- Material quality impeller/pump wheel: Cast iron EN-GJL-200 (GG 20)
- Max. discharge flow: 6.48 m³/h
- Medium temperature (continuous): 0-35 °C
- Rated voltage: 220-240 V
- Volume flow rate (BEP): 4.5 m³/h
- Discharge head at flow rate (BEP): 45 kPa
- Rotational speed: 2900 1/min
