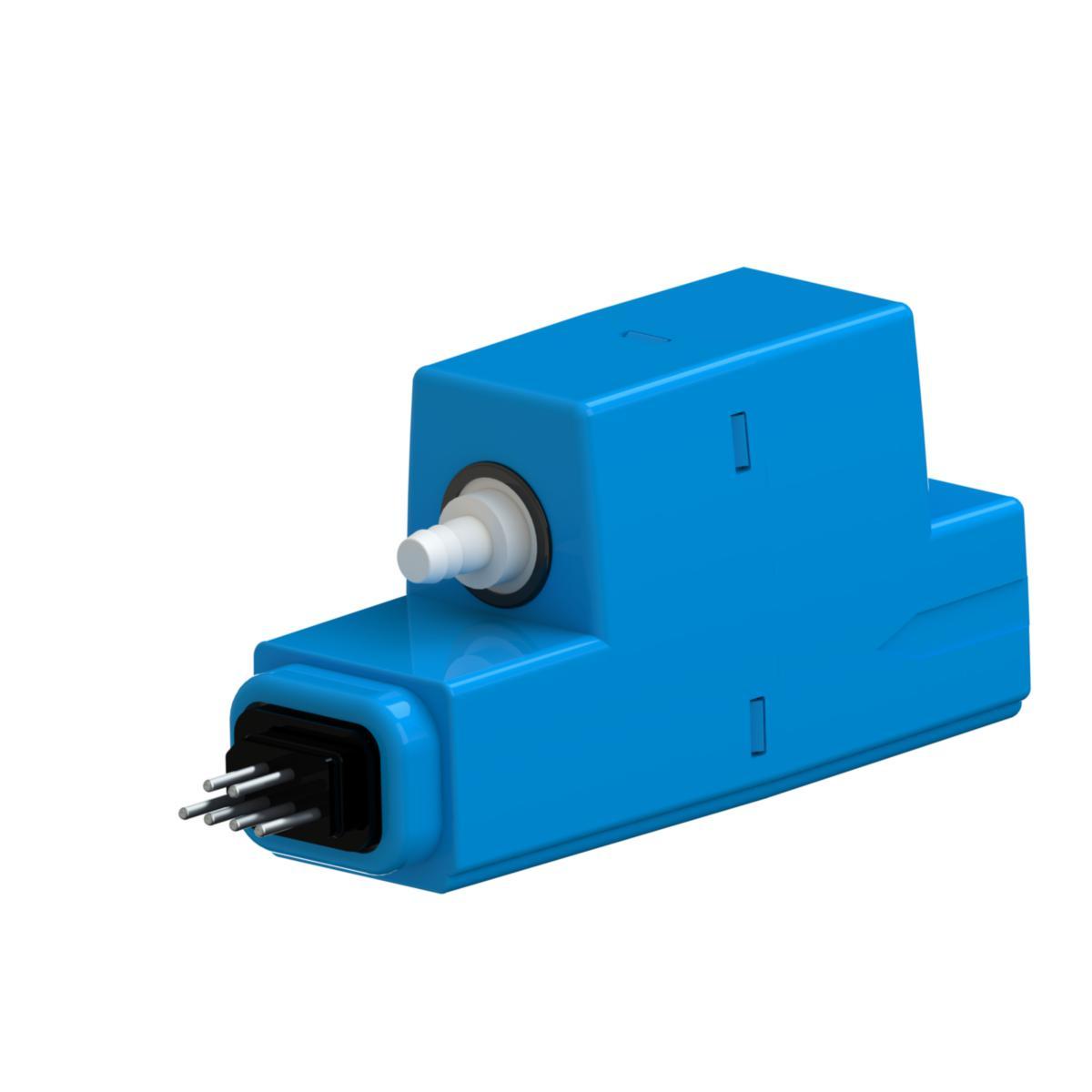

Condensate water pump Sanicondens Clim Mini S, Saniflo
SANICONDENS CLIM MINI S SANIFLO
Article number: Suppl. article no:
5578576
5578576
to see price and stock

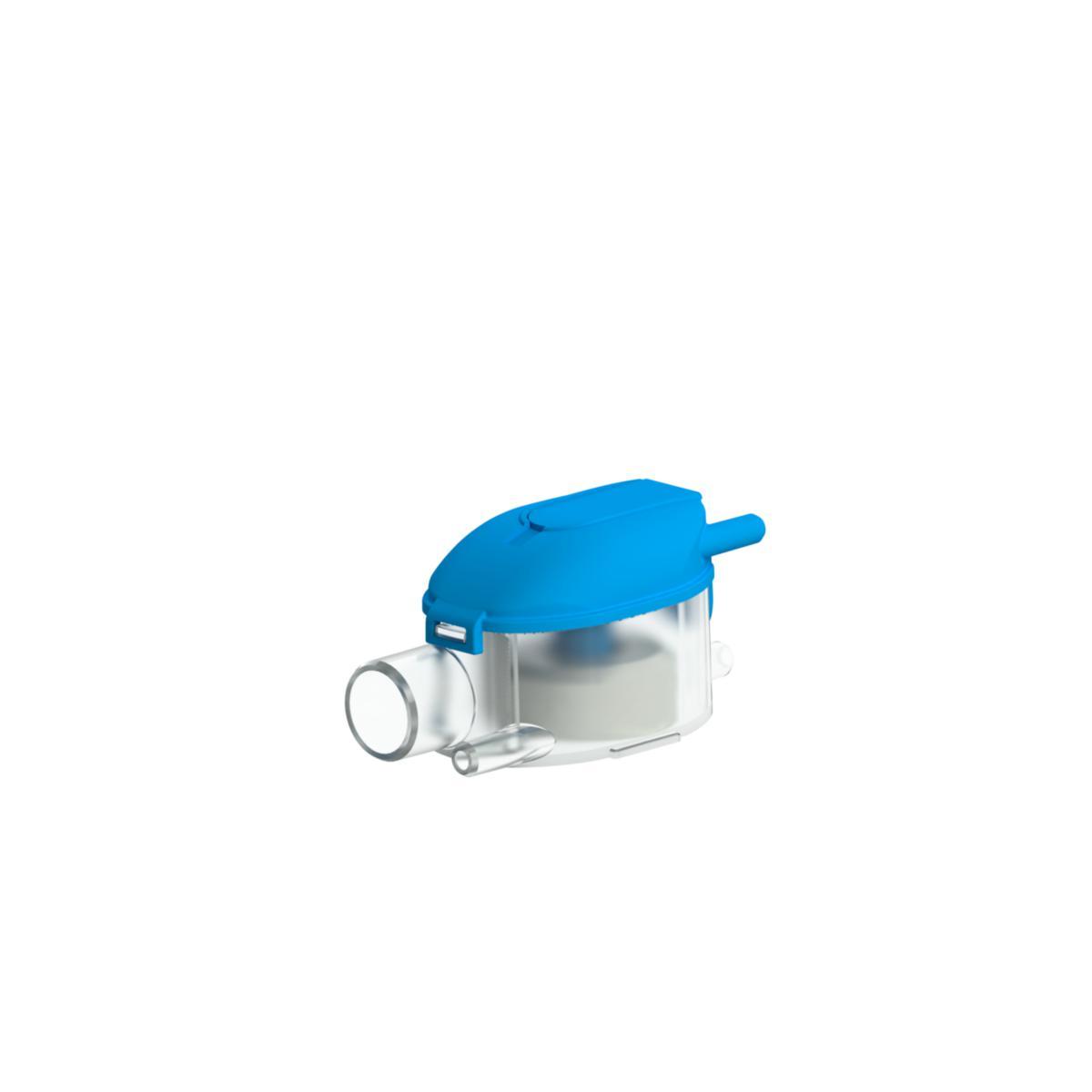

The new generation pump in a compact design for wall-mounted air conditioning, specially designed to meet market requirements and equipped with the best features. Alarm system (thermal protection 130 ° C and overfill). Quiet operation of only 21dB (A). Supplied control unit with transparent housing. Compact pump for concealed installation. Max 8kW / 27,000 BTU Øi inlet 16mm Øi outlet 6mm Max flow 9l / h +/- 15% Max water temp inflow 35 ° C Maximum suction height between level sensor and pump: 2m Included: 1.2 m flexible hose, mounting bracket, ventilation pipe, power cable IP- class: IP20
- Article number: 5578576
- Suppl. article no: 5578576
- Ean no: 3308815083520
- Replaces art.nbr: 5886712
- Material class PHM140
Technical data
- Packagin Size: 1 ST/120 ST
- Degree of protection (IP): IP20
- Width: 120 mm
- Height: 54 mm
- Frequency: 50/60 Hz
- Max. static height: 6 m
- Depth: 33 mm
- Motor power input (P1) per motor: 22 W
- Material pump casing: Plastic
- Rated voltage: 220-240 V
- Max. discharge flow: 9 l/h
- Max. suction height: 2 m
- Medium temperature (continuous): 1-35 °C
- Noise emission: 21 dB(A)
- Electrical connection: Cable
- Suitable for wall mounting: Yes
- Diameter connection inlet side: 16 mm
- Diameter connection outlet side: 6 mm
