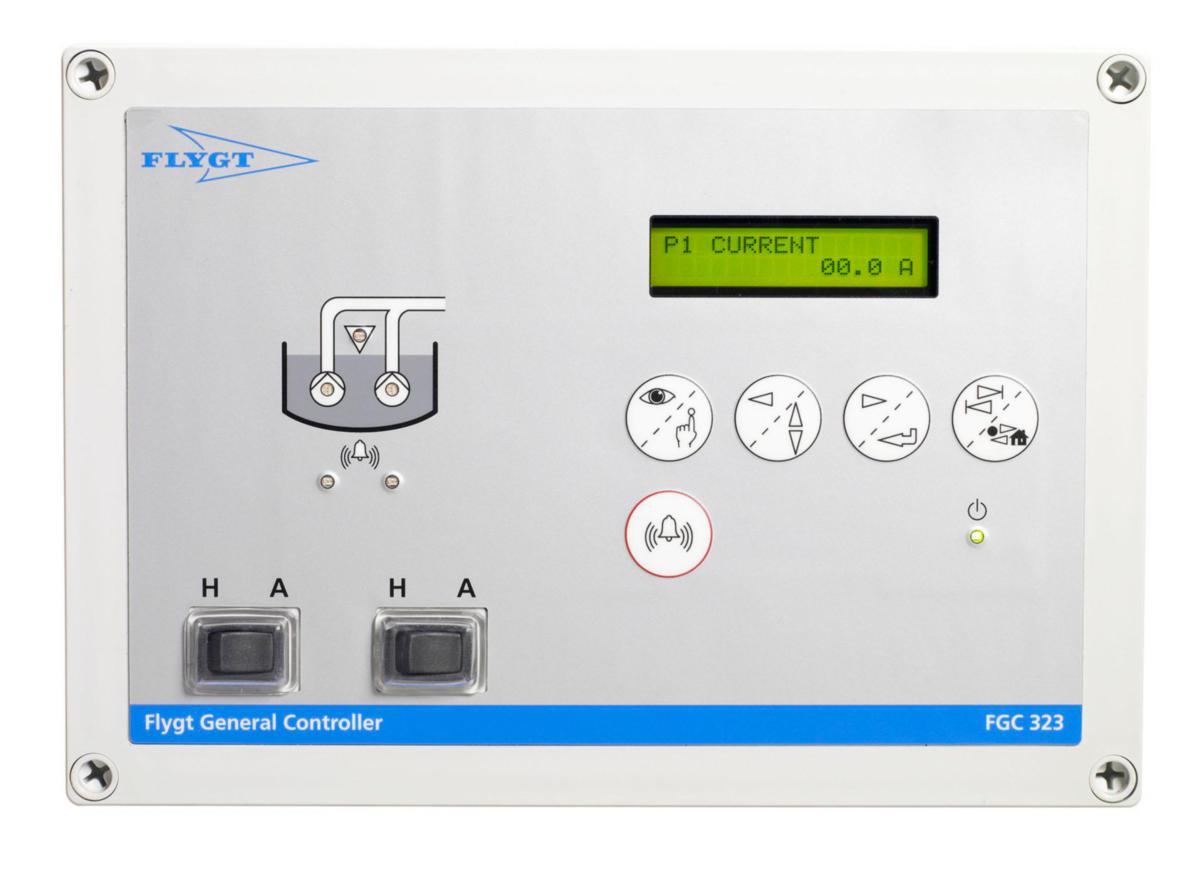

Pump Control FGC-323/S5, Flygt

Flygt pump control FGC-323/S5. For two pumps 3x400V, 1-11 A. (max total 18 A. during two-pump operation). IP54. The pump control requires separate fusing and neutral conductor (5-wire system). Level determination analog with Flygt level sensor LTU 601 or digital with Flygt level float ENM-10 (ordered separately). Equipment and functions: Contactors with electronic motor protection, start alternation, Display showing -voltage -current -number of starts -operating time and alarms, Hand-0-Auto switch, Thermo contact monitoring, Alarm for high temperature, high level, and overcurrent. The cabinet is prepared for communication and remote monitoring to a superior system or alarm via SMS. The pumps are connected to the contactor, other connections via terminal block, and the cabinet is prepared with holes for strain relief for respective cables. For wall mounting, size 180x255x100 (HxWxD).
