Debe

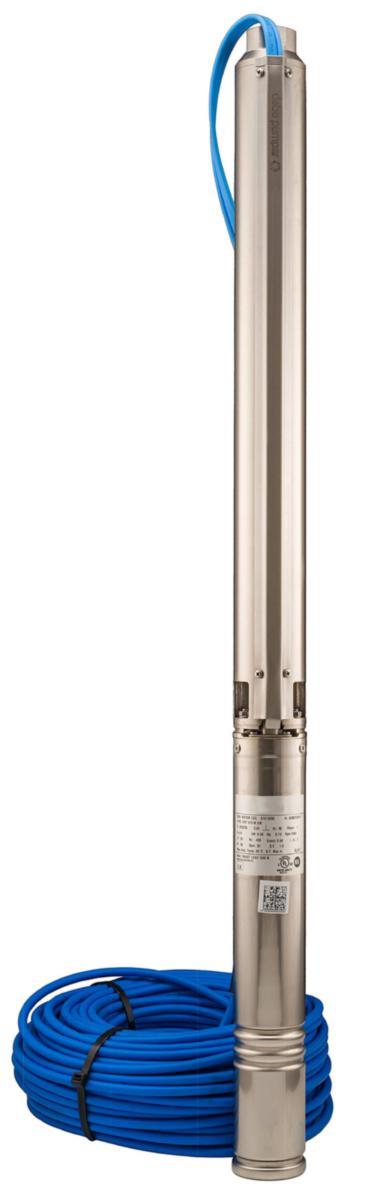

Pump Package DB3, Debe
PUMPPACKAGE DB3 2/16 30M 230V 3" PUMP, DEBE
Article number: Suppl. article no:
5853140
8716215
to see price and stock
New generation 3" pump, floating impeller. Drinking water approved electric cable. Small outer diameter 76mm.
- Article number: 5853140
- Suppl. article no: 8716215
- Material class PHA110
Technical data
- Frequency: 50 Hz
- Motor power output (P2) per motor: 0.37 kW
- Degree of protection (IP): IP68
- Insulation class according to IEC: B
- Nominal current: 3.8 A
- Pump and motor length: 923 mm
- Pump diameter: 76 mm
- Electrical connection: Cable
- Cable length: 30 m
- Rotational speed: 2850 Rpm
- With non-return valve: Yes
- Material quality impeller/pump wheel: PP-GF
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection outlet side: 1 1/4 inch (32)
- Material pump casing: Stainless steel
- Rated voltage: 230 V
- Volume flow rate (BEP): 1.9 m³/h
- Discharge head at flow rate (BEP): 350 kPa
- REACH Date: 2023-01-26
- REACH Information obligation: No
