ACO

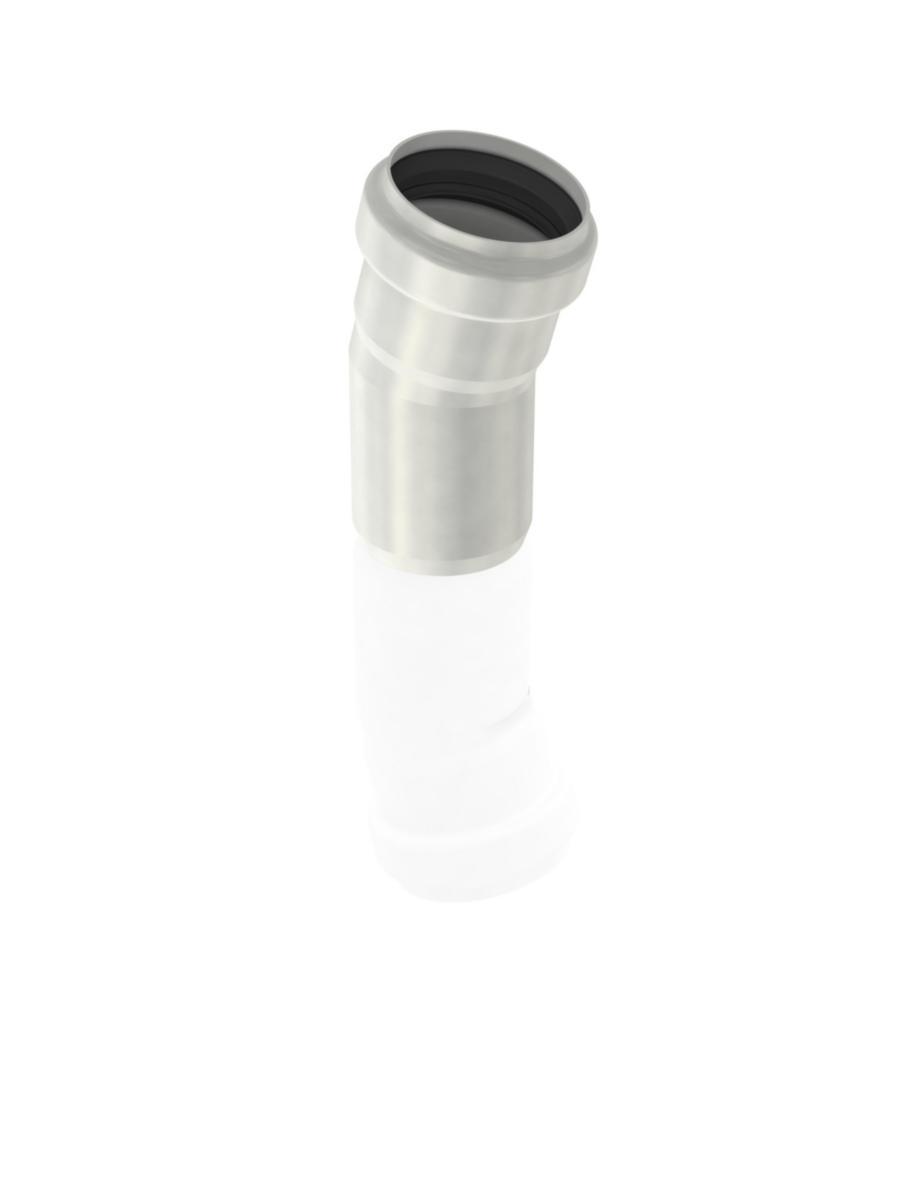

Bend AISI 316
ELBOW 160/15° 316L ACO PIPE
Article number: Suppl. article no:
1451289
2021599
to see price and stock
EPDM seal.
- Article number: 1451289
- Suppl. article no: 2021599
- Ean no: 8590830203433
- Material class PBS13B
- This is an alternative to item 1450977
Technical data
- Packagin Size: 1 ST/18 ST
- Outer pipe diameter connection 1: 160 mm
- Outer pipe diameter connection 2: 160 mm
- Nominal diameter connection 1: DN 150
- Nominal diameter connection 2: DN 150
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Shape: Bend
- Bend angle: 15 °
- Connection 1: Slide end
- Connection 2: Slide sleeve
- Wall thickness, connection 1: 1.25 mm
- Wall thickness, connection 2: 1.25 mm
- Max. operating pressure at 20 °C: 2 bar
- Model: 1-part
- Surface treatment connection 1: Other
- Surface treatment connection 2: Other
- Surface protection connection 1: Other
- Surface protection connection 2: Other
- Medium temperature (continuous): -50-130 °C
- GWP-tot (A1-A3): 3,1174 kgCO2e/ST
