NIBE

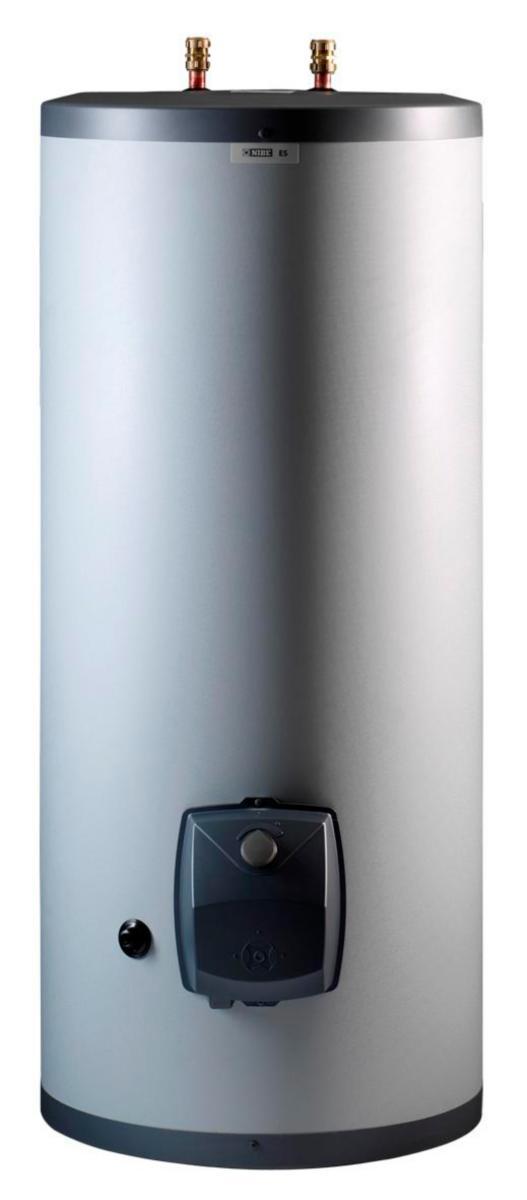

Electric water heater, storage type, Type ES for vertical installation, with footring, Nibe
ES24-300 NIBE ELECTRIC HWT 6/3KW, 400V 3PHASE, STANDING
Article number: Suppl. article no:
6944612
073421
to see price and stock
For closed system. With immersion heater, overheating protection, thermostat and safety valve.
- Article number: 6944612
- Suppl. article no: 073421
- Ean no: 7331421321782
- Material class PFG110
Technical data
- Tank volume: 263 l
- Height: 1380 mm
- Nominal power: 6 kW
- Energy efficiency class: D
- Connection voltage: 400 V
- Material boiler tank: Steel
- Vertical positioning: Yes
- Design form: Floor standing
- Frequency: 50 Hz
- Degree of protection (IP): IP24
- With tap/mixer: No
- Max. operating pressure: 10 bar
- Diameter: 600 mm
- Width: 600 mm
- Outer pipe diameter hot tap water: 28 mm
- Outer pipe diameter cold tap water: 28 mm
- Three-phase model: Yes
- Duo model: No
- With circulation connection: Yes
- With off-peak electricity circuit: No
- With thermometer: No
- With temperature indication: No
- With pressure reducing valve: No
- With watercooler: No
- Horizontal positioning: No
- With cleaning opening: No
- With temperature limit: Yes
- Wall set-up: No
- Suitable for boiling water: No
- Protective anode: No
- Capacity profile: XL
- Depth: 600 mm
- Material casing: Steel
- Cold tap water connection: Tube end
- Hot tap water connection: Tube end
- Plinth boiler: No
- Low-pressure model: No
- Hot fill: No
- Heat-up time from 10 °C to 65 °C: 168 min
- Nominal diameter drain connection: 1/2 inch (15)
- ηwh (water heating energy efficiency): 37.2 %
- Connection, drainage connection: Other
- Circulation pipe connection: Tube end
- Outer pipe diameter circulation pipe: 15 mm
- REACH Date: 2024-01-23
- REACH contains candidate substances: Bly
- Type: ES24-300
- Material: Copper lined steel plate
- REACH Information obligation: Yes
