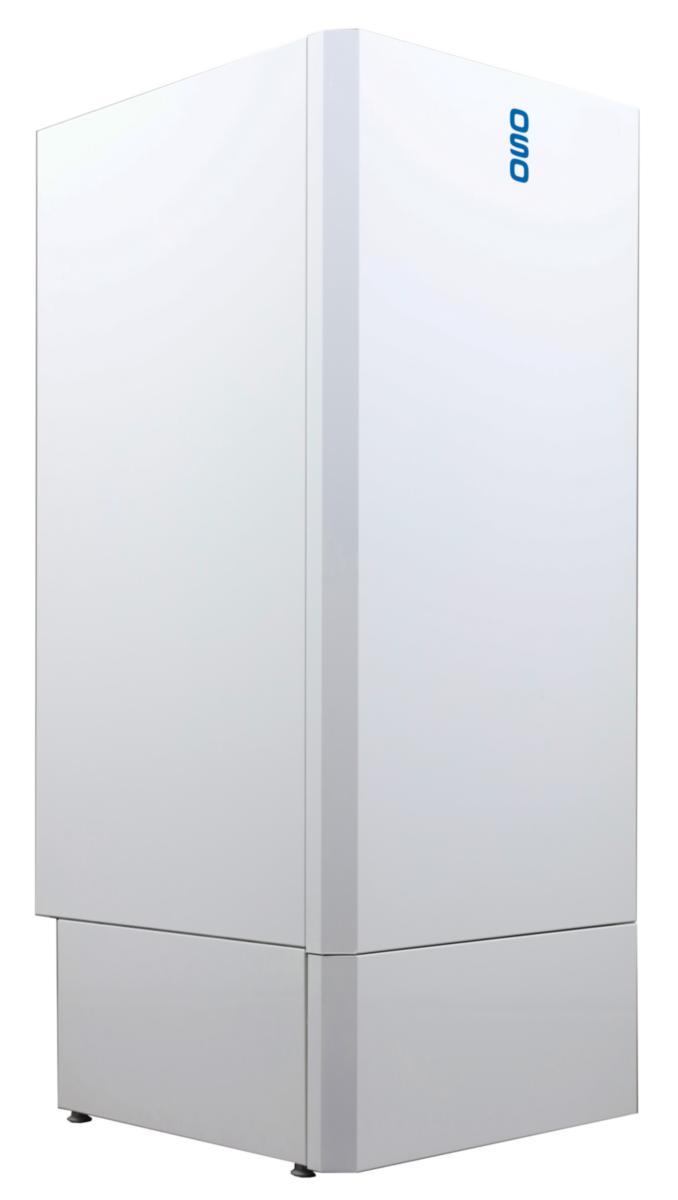

Electric water heater Cubix C, OSO
WATERHEATER OSO CUBIX C 200
Article number: Suppl. article no:
6935106
11003380
to see price and stock
Stainless steel water heater. Cubix is designed to provide homes with hot water. Electric heating. The product is intended for floor-standing installation, and has all pipe connections on the underside.
- Article number: 6935106
- Suppl. article no: 11003380
- Ean no: 7070644012274
- Material class PFF160
Technical data
- Tank volume: 190 l
- Height: 1370 mm
- Material boiler tank: Stainless steel
- Width: 595 mm
- Depth: 635 mm
- Max. operating pressure: 10 bar
- Connection voltage: 400 V
- Nominal power: 3 kW
- Design form: Floor standing
- Three-phase model: Yes
- With circulation connection: No
- Capacity profile: XL
- Material casing: Steel
- Horizontal positioning: Yes
- With tap/mixer: Yes
- With off-peak electricity circuit: No
- With temperature indication: No
- With thermometer: No
- With watercooler: No
- Vertical positioning: Yes
- Protective anode: No
- Plinth boiler: Yes
- Wall set-up: No
- Energy efficiency class: D
- Suitable for boiling water: No
- Duo model: No
- Frequency: 50 Hz
- Degree of protection (IP): IP21
- With pressure reducing valve: No
- Outer pipe diameter hot tap water: 22 mm
- Outer pipe diameter cold tap water: 22 mm
- With temperature limit: Yes
- Low-pressure model: No
- With cleaning opening: No
- Cold tap water connection: Other
- Hot tap water connection: Other
- Hot fill: Yes
- Surface protection tank: Untreated
- REACH Date: 2025-09-17
- REACH Information obligation: No
