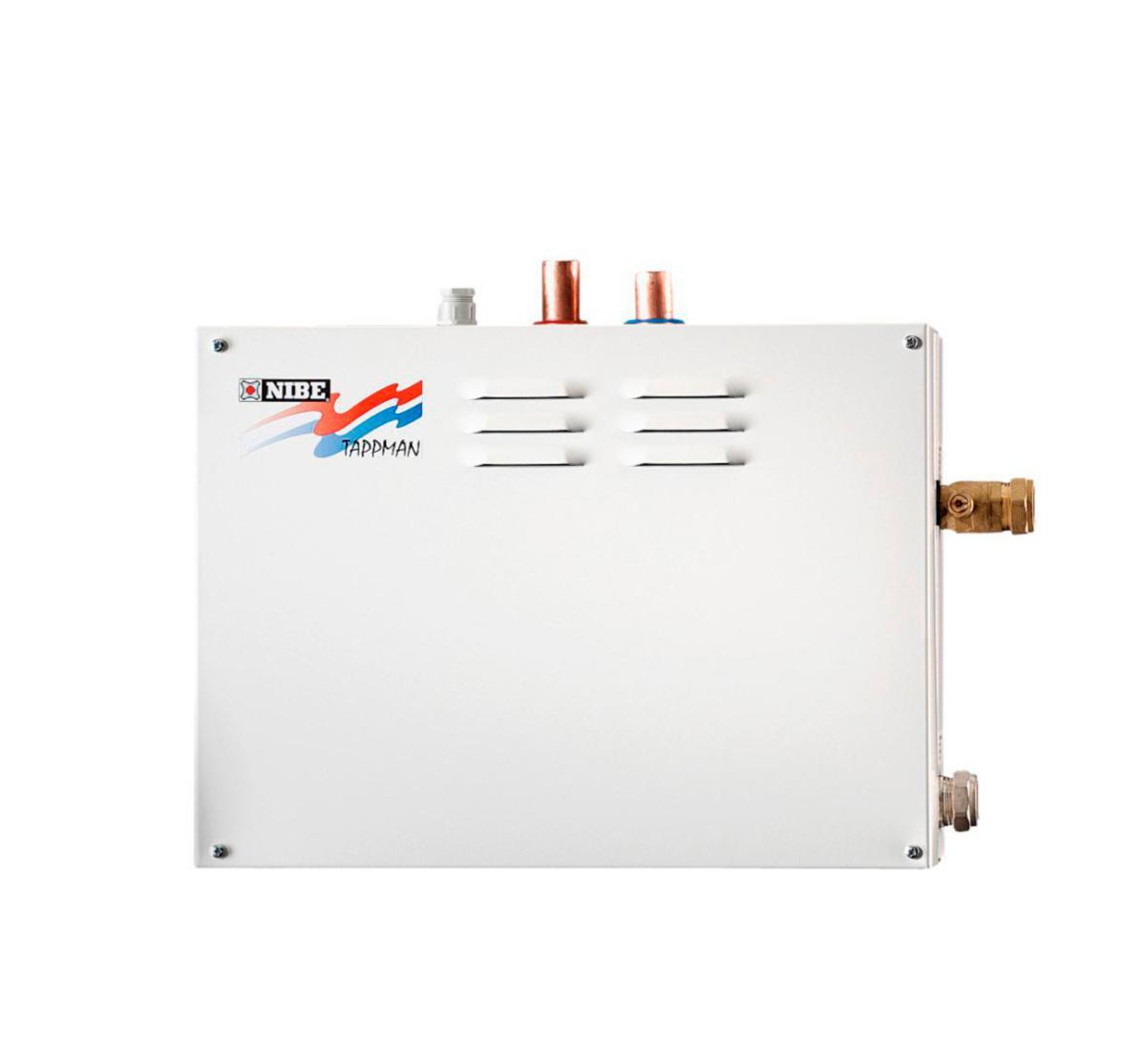

Hot water dispenser Tappman, Nibe
TAPMAN NIBE HOTWATER EXCHANGER
Article number: Suppl. article no:
6525490
089826
to see price and stock
In order to maintain an acceptable warm water capacity, a water volume of at least 150 litres and a boiler temperature of 75°C is recommended.
- Article number: 6525490
- Suppl. article no: 089826
- Material class PFE100
Technical data
- Packagin Size: 1 ST/5 ST
- Connection voltage: 230 V
- Width: 415 mm
- Depth: 140 mm
- Height: 305 mm
- Charging pump (central heating): No
- Legionella protection: No
- Material exchanger: Stainless steel
- Control equipment: No
- Tap water pump: Yes
- Three-way control valve: No
- Outer pipe diameter cold tap water: 22 mm
- Outer pipe diameter hot tap water: 22 mm
- Cold tap water connection: Tube end
- Hot tap water connection: Tube end
- Max. operating pressure: 10 bar
- Nominal power: 45 kW
- Exchanger with dual separation: Yes
- Max. supply temperature: 85 °C
- Outer pipe diameter return: 22 mm
- Outer pipe diameter supply: 22 mm
- Connection return: Tube end
- Connection supply: Tube end
- REACH Date: 2024-01-23
- REACH contains candidate substances: Bly
- Type: Extractor tube
- REACH Information obligation: Yes
