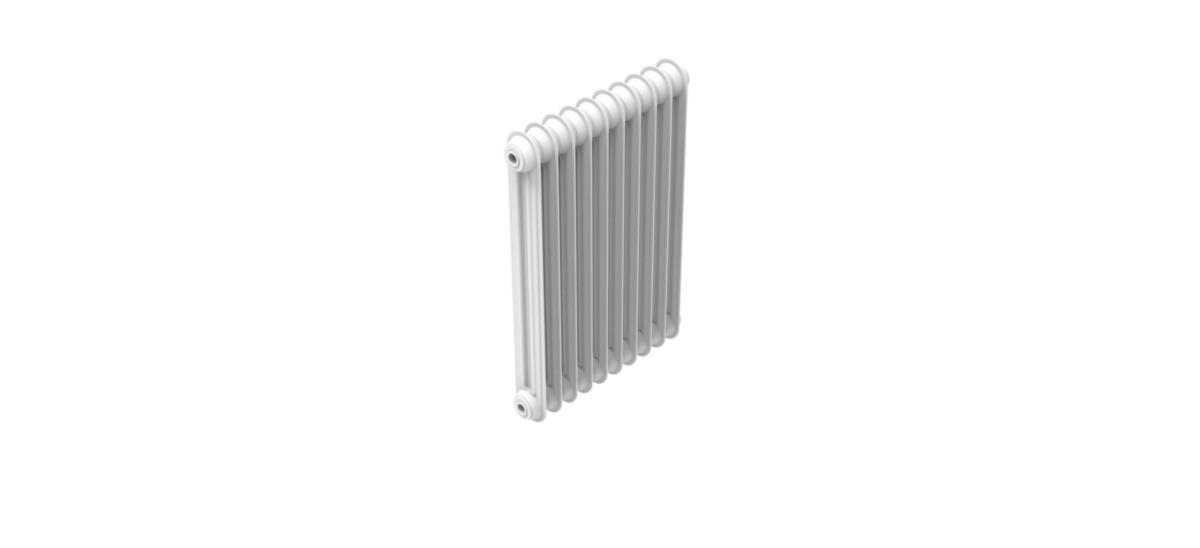

Section radiator, Lenhovda MR
MR16-590 SECTIONALRADIATOR LENHOVDA R15
Article number:
6728408
to see price and stock
Sektionsradiator MR anslutning R15 ABCD, H580 L600, vit RAL9016. Sektionsbredd 37.5 mm.
Högre tryckklass offereras på begäran.
Ytbehandling: Avfettning, rostskyddsbehandling, fosfatering, grundmålning och pulverlackering. Standardkulör: RAL9010.
* Värmeavg vid Δd.t 50°C/Watt
** Värmeavg vid Δd.t 30°C/Watt
Högre tryckklass offereras på begäran.
Ytbehandling: Avfettning, rostskyddsbehandling, fosfatering, grundmålning och pulverlackering. Standardkulör: RAL9010.
* Värmeavg vid Δd.t 50°C/Watt
** Värmeavg vid Δd.t 30°C/Watt
- Article number: 6728408
- Material class PEV180
Technical data
- Thread connection: Internal thread
- Number of elements: 16
- Depth: 75 mm
- Colour: White
- Thread size (inch): 1/2 inch
- Height: 580 mm
- Length: 600 mm
- Max. operating pressure: 6 bar
- RAL-number: 9016
- Heat emission according to EN 442 20 °C - 55/45: 304 W
- Number of standard connections: 4
- Material: Steel
- With drain valve: No
- With blind plugs: Yes
- With integrated thermostatic valve: No
- With consoles: Yes
- With de-aerator: Yes
- With mounting material: Yes
- Water content: 6.08 l
- Heat emission according to EN 442 20 °C - 75/65: 591 W
- REACH Date: 2025-11-11
- GWP-tot (A1-A3): 31,4160 kgCO2e/ST
- Type: MR
- Section depth: 75 mm
- Design: 15kg
- REACH Information obligation: No
- Section width: 37.5 mm
