Purmo

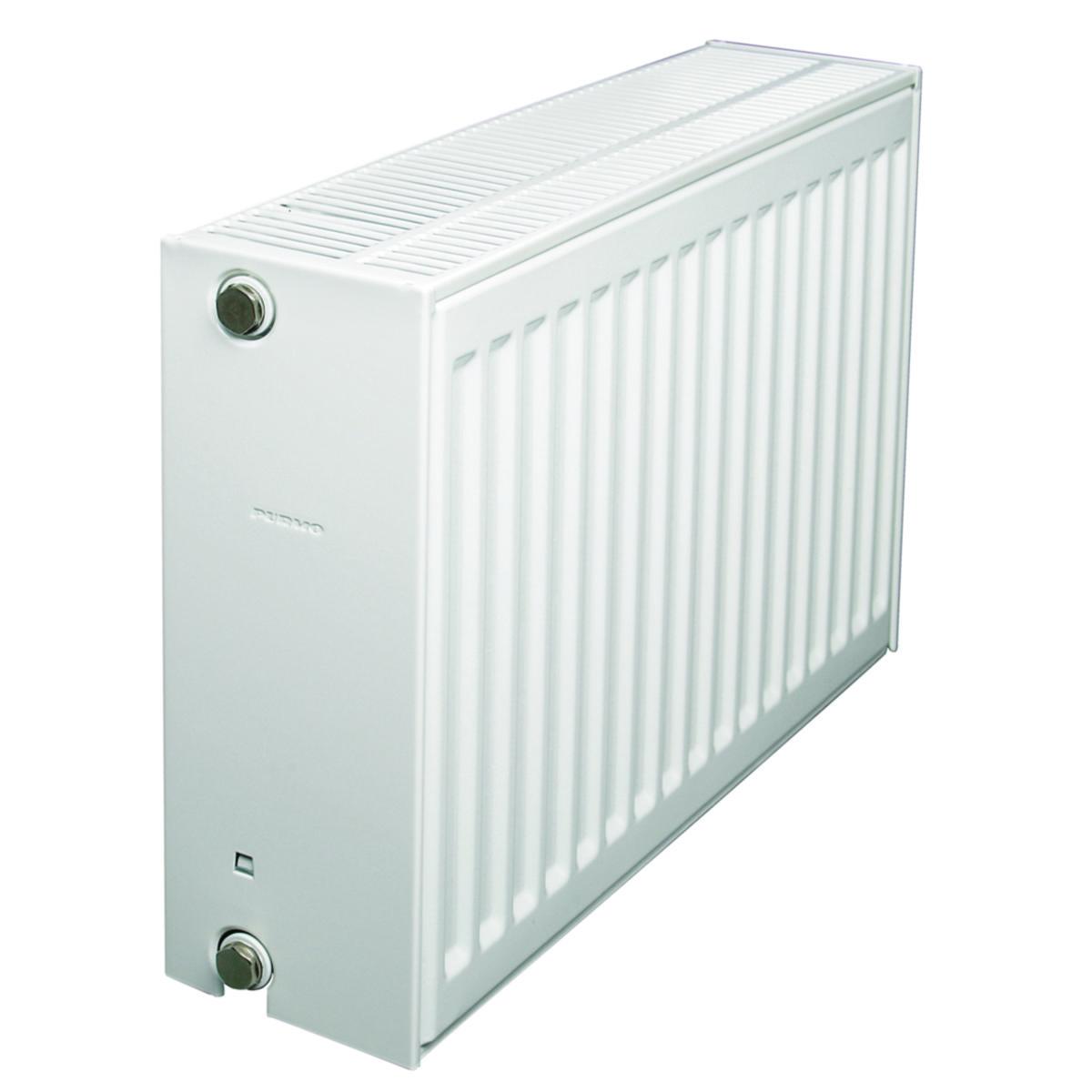

Radiator Purmo Compact C 33, with mounted Danfoss RADV-coupling, height 500 mm
PC33-5010 PURMO COMPACT RADV DANF PURE PRESSINDEP
Article number: Suppl. article no:
6733248D1
6733248D1
to see price and stock
Radiator with mounted Danfoss RADV coupler.
* Heat output at Δd.t 50°C/Watt.
** Heat output at Δd.t 32.5/33°C/Watt.
Made of cold rolled steel, painted in white color RAL 9016.
Max pressure 10 bar.
Connection 4 x R15 inv gg.
Delivered with Air Screw Plug and brackets.
* Heat output at Δd.t 50°C/Watt.
** Heat output at Δd.t 32.5/33°C/Watt.
Made of cold rolled steel, painted in white color RAL 9016.
Max pressure 10 bar.
Connection 4 x R15 inv gg.
Delivered with Air Screw Plug and brackets.
- Article number: 6733248D1
- Suppl. article no: 6733248D1
- Material class PEV110
Technical data
- Length: 1000 mm
- Height: 500 mm
- Depth: 150 mm
- Heat emission according to EN 442 20 °C - 55/45: 1028 W
- Heat emission according to EN 442 20 °C - 75/65: 2035 W
- Water content: 8.2 l
- Colour: White
- Degree of gloss: Glossy
- Thread connection: Internal thread
- Thread size (inch): 1/2 inch
- With integrated thermostatic valve: No
- Suitable for electrical element: No
- Suitable for damp space: No
- Material: Steel
- Max. operating pressure: 10 bar
- With de-aerator: Yes
- With drain valve: Yes
- With blind plugs: Yes
- With electrical element: No
- With single-point connection: Yes
- With de-aeration connection: No
- With mounting material: No
- With side lining: Yes
- With wall brackets: Yes
- With top lining: Yes
- N-exponent: 1.337
- Welded-on strips: Yes
- RAL-number: 9016
- Standard colour: Yes
- Type: 33
- Number of standard connections: 4
- GWP-tot (A1-A3): 116,508 kgCO2e/ST
