NIBE

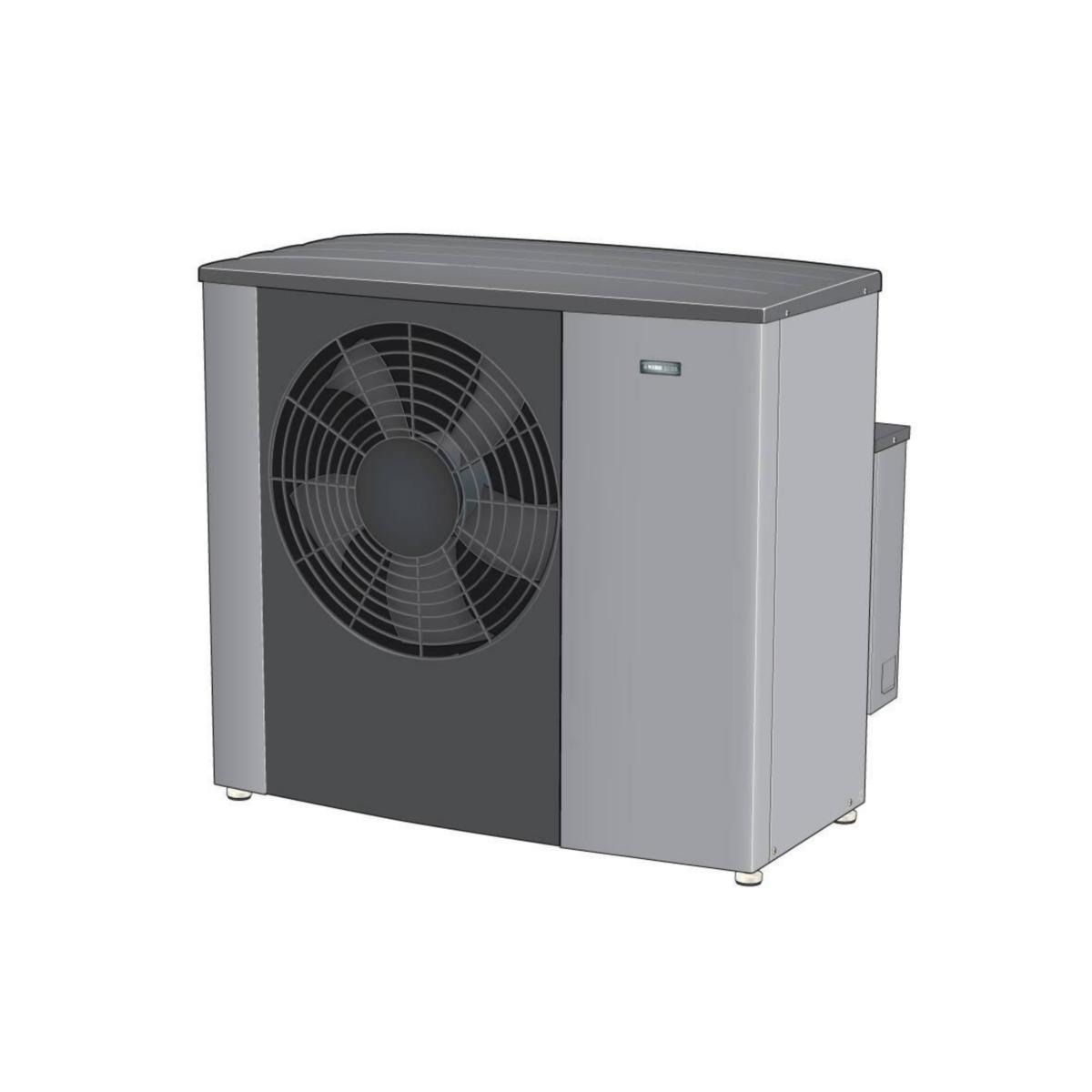

Air-to-air heat pump Outdoor unit S2125, Nibe
S2125-8 AIR/WATER VP NIBE OUTDOOR UNIT 230V
Article number: Suppl. article no:
6251415
064220
to see price and stock
Inverter-controlled outdoor air unit intended to be docked to water-borne heating systems together with the indoor modules VVM S320 / 325, VVM 310/320/325 and VVM 500. Pre-assembled trough heater. Dimensioned for a power requirement up to 8kW
- Article number: 6251415
- Suppl. article no: 064220
- Replaces art.nbr: 6251363
- Material class PEQ140
Technical data
- Height: 1080 mm
- Width: 1128 mm
- Depth: 831 mm
- Weight: 163 kg
- Refrigerant pre-charge: 0.8 kg
- Degree of protection (IP): IP24
- Type of refrigerant: R290
- Connection voltage: 220-240 V
- Device emplacement: Outdoor positioning
- Swimming pool controls: No
- Frequency: 50 Hz
- Type of regulation: Other
- Sofstarter built-in: Yes
- COP at 7/35 °C according to EN 14511: 4.44
- Sound performance level according to EN 12102 at 0/35 °C: 49 dB
- Max. operating pressure output system: 4.5 bar
- Number of phases: 1
- Sound pressure level according to EN 12102 at 0/35 °C at 1 m distance: 44 dB
- Suitable for additional heating central heating: Yes
- Data transfer via internet: Yes
- Data transfer via USB: Yes
- Global warming potential (GWP): 3
- REACH Date: 2024-01-23
- REACH contains candidate substances: Bly
- Design: S2125-8
- REACH Information obligation: Yes
