NIBE

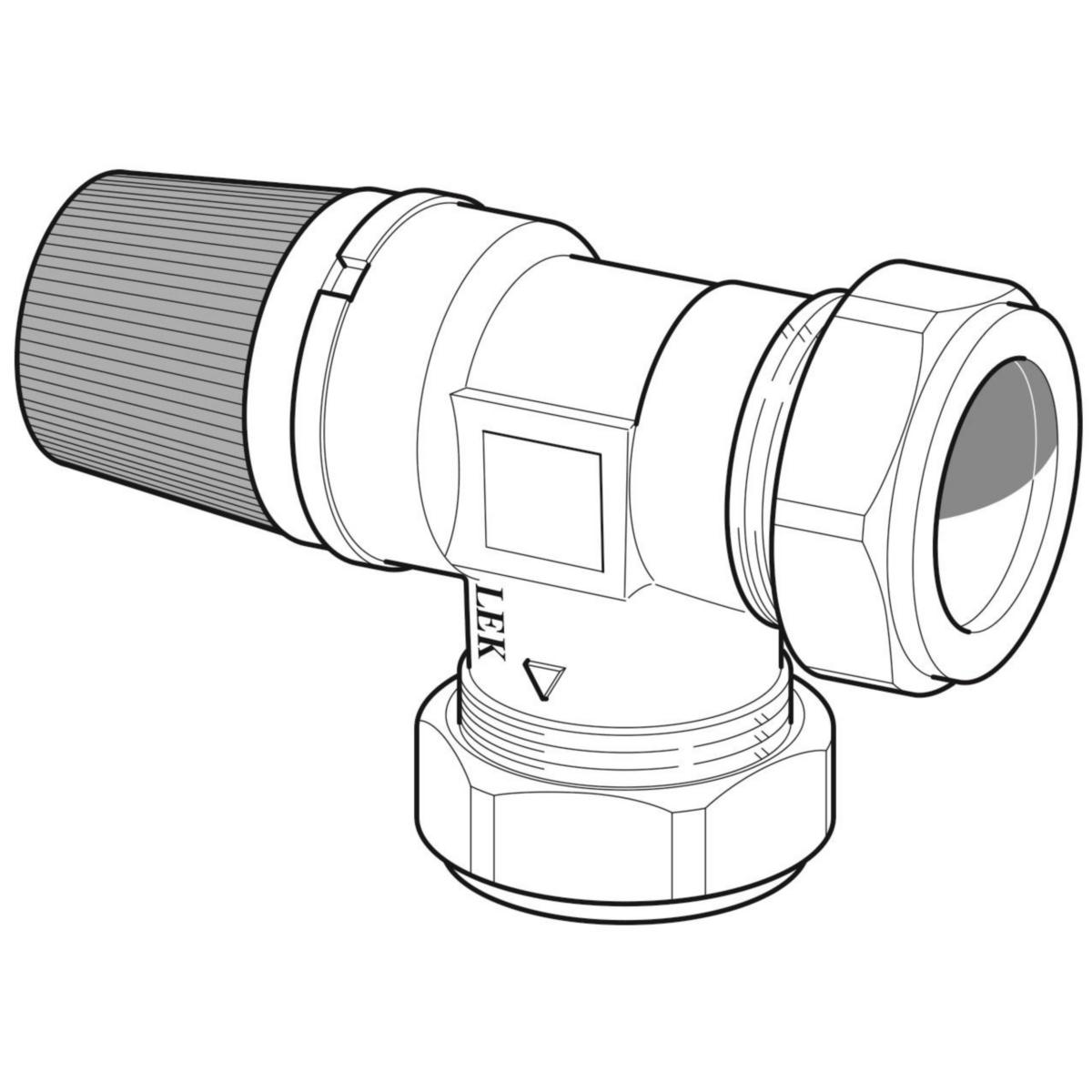

Safety valve, Nibe
SAFETY-VALVE 1.5 bar Ø22 SAFETY VALVE 1.5 BAR Ø22
Article number: Suppl. article no:
6212294
624889
to see price and stock
- Article number: 6212294
- Suppl. article no: 624889
- Ean no: 7331421335949
- Material class PEK15B
Technical data
- Connection 1: Clamp connection
- Connection 2: Clamp connection
- Bellows seal: No
- Angle of the device: 90 °
- Height: 86.3 mm
- Suitable for continuous operation: Yes
- Length of connection 1: 37 mm
- Length of connection 2: 41 mm
- Material quality: Dezincification resistant brass (DZR)
- Model: Right-angled
- Nominal diameter connection 1: Other
- Sealing: Rubber/plastic
- Outer pipe diameter connection 1: 22 mm
- Surface protection: Untreated
- Overflow pressure: 1.5 bar
- Nominal diameter connection 2: Other
- Housing material: Brass
- Max. operating pressure at 20 °C: 2.5 bar
- Outer pipe diameter connection 2: 22 mm
- REACH Date: 2024-01-23
- REACH Information obligation: No
