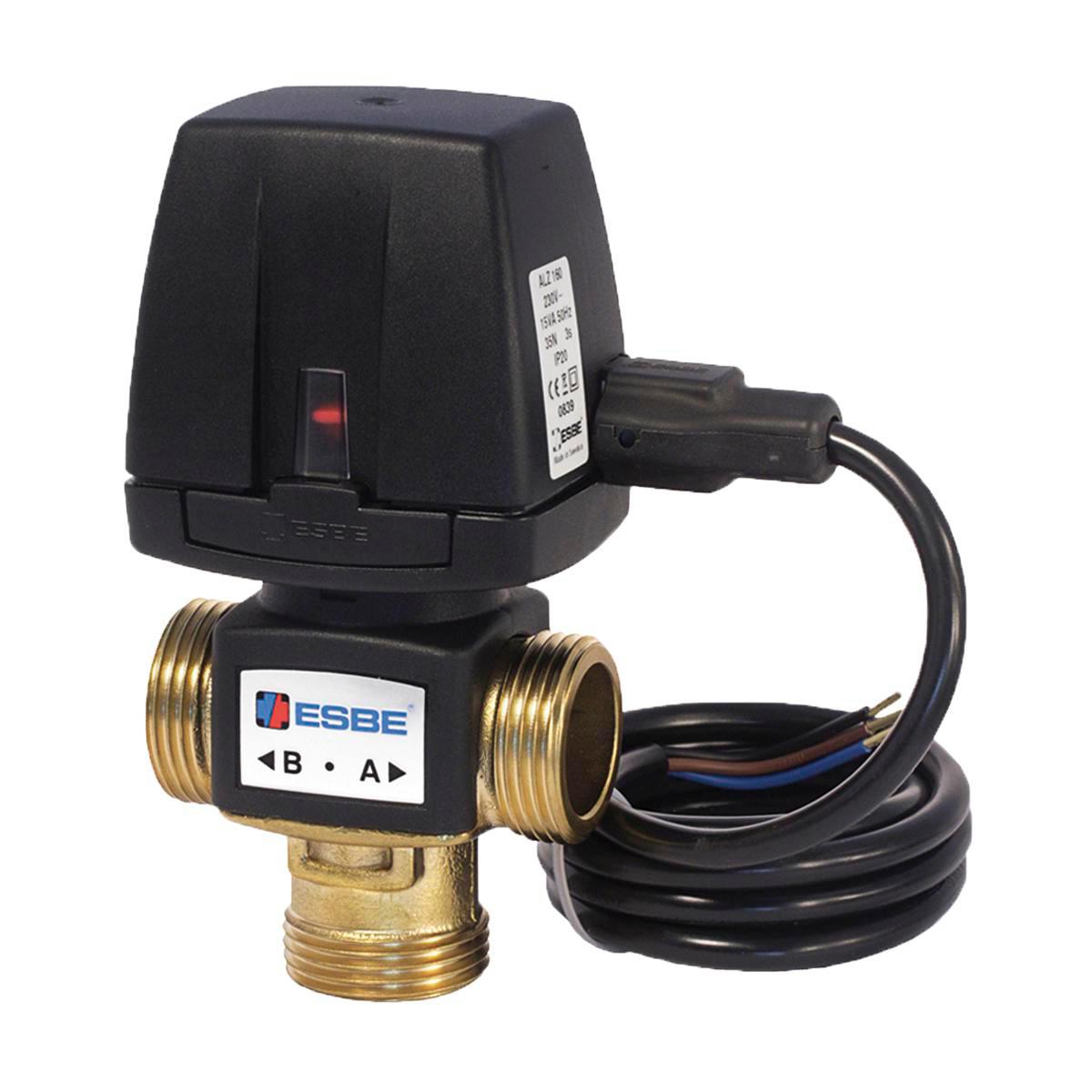

Shift valve VZD162, Esab
VZD162 2-P 230V G1 20-6,0
Article number: Suppl. article no:
4828502
43080400
to see price and stock
The ESBE series VZC and VZD are a series of compact changeover valves in brass intended for heat pumps, underfloor heating or HVAC applications. The main feature is the ability to quickly switch flow direction between two circuits resulting in energy efficient operation. The actuator series VZC has a Molex-type connector for quick connection of the cable to the actuator. The actuator series VZD is delivered with a fixed cable and has enclosure class IP40. The VZC and VZD series are also available with additional switches.
- Article number: 4828502
- Suppl. article no: 43080400
- Ean no: 7330193045179
- Material class PEB11B
Technical data
- Connections: External thread cylindrical BSPP-G (ISO 228-1)
- Width: 70 mm
- Nominal diameter: DN 20
- Depth: 58 mm
- Frequency: 50 Hz
- Operating time: 3 s
- Height: 141 mm
- Degree of protection (IP): IP40
- Kvs value: 6
- Leakage loss of Kvs value: 0 %
- Suitable for manual operation: No
- Length of connection 1: 35 mm
- Length of connection 2: 35 mm
- Length of connection 3: 42 mm
- Housing material: Brass
- Material quality: Dezincification resistant brass (DZR)
- Supply voltage: 230 V AC
- Max. electric power input: 15 VA
- Max. pressure difference in opened position: 0.8 bar
- With coupling connection 1: No
- With coupling connection 2: No
- With coupling connection 3: No
- Ambient temperature: 0-60 °C
- Control signal: 2-point
- Transmission: With cogwheels
- Article compression class: PN 6
- Surface protection: Untreated
- REACH Date: 2021-01-19
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
