Fan heater SAV12, Eveco
SAV12GN SAVANA AEROTEMPER EVECO G20 13KW 80/60 +15°
Article number: Suppl. article no:
6703358
SAV12GN
to see price and stock

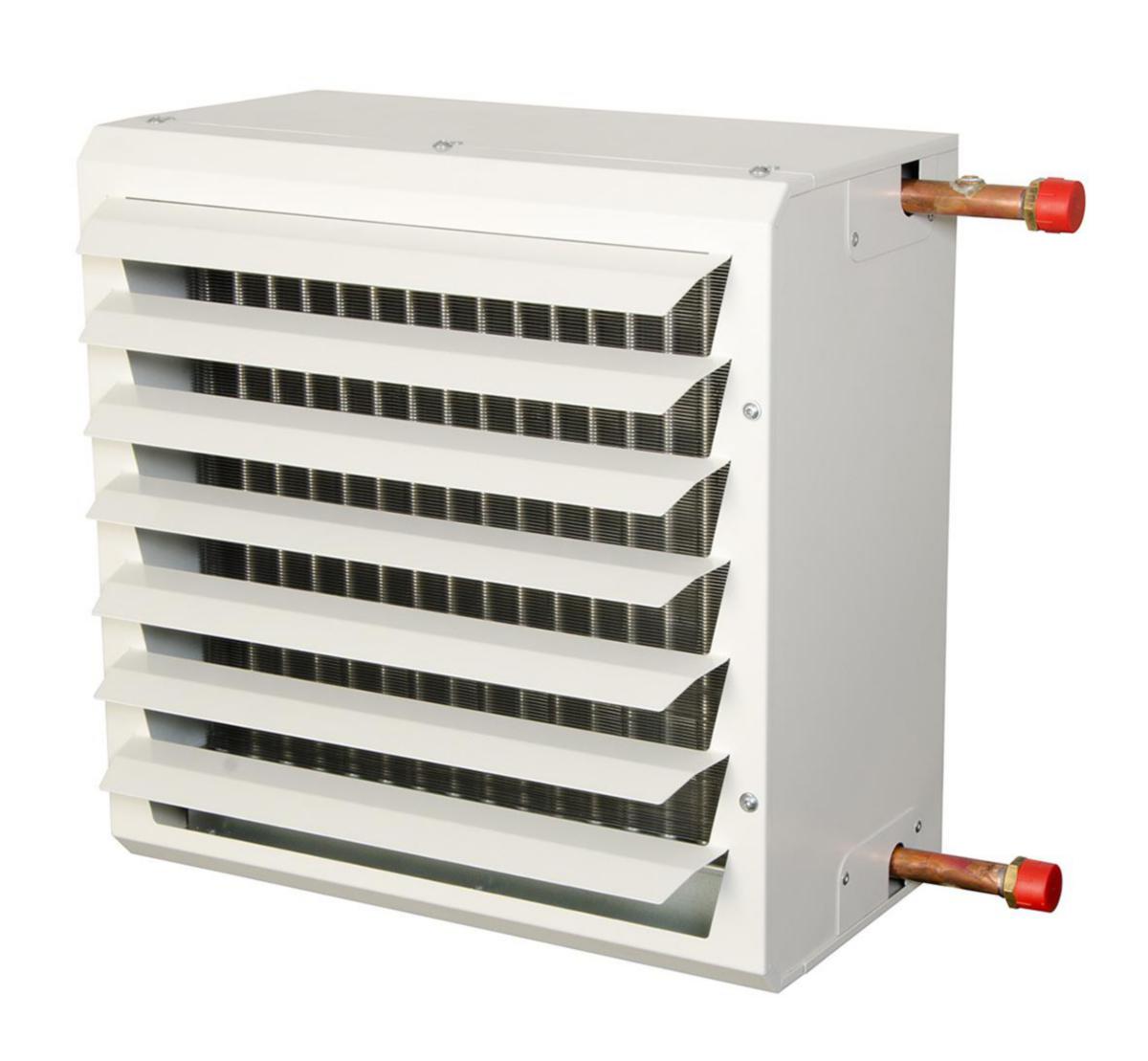

Air heater with fan motor. SAVANA is suitable for heating industries, warehouses, retail premises and other environments where an attractive air heater is to be used. 2 rows of water coil.
- Article number: 6703358
- Suppl. article no: SAV12GN
- Material class PEZ200
Technical data
- Width: 455 mm
- Depth: 350 mm
- Height: 455 mm
- Air volume: 454-1313 m³/h
- Weight including filling: 16 kg
- Nominal current: 0.65 A
- Heat emission: 13 kW
- Connection: External thread cylindrical BSPP-G (ISO 228-1)
- Connection voltage: 220-230 V
- Material heat exchanger: Aluminium/copper
- Adjustable fins on exhaust side: Yes
- Number of phases: 1
- Sound pressure level at height of 5 metres: 29.1-50.5 dB(A)
- Nominal diameter: 3/4 inch (20)
- Suitable for in-roof mounting: Yes
- With suspension: No
- Suitable for wall mounting: Yes
- Fan type: Axial
- Suitable for floor mounting: No
- Suitable for floor mounting: No
- Suitable for wall mounting: Yes
- REACH Date: 2024-03-13
- Type: SAV12GN
- Design: With air deflector
- REACH Information obligation: No
