Fan heater SWL, Frico

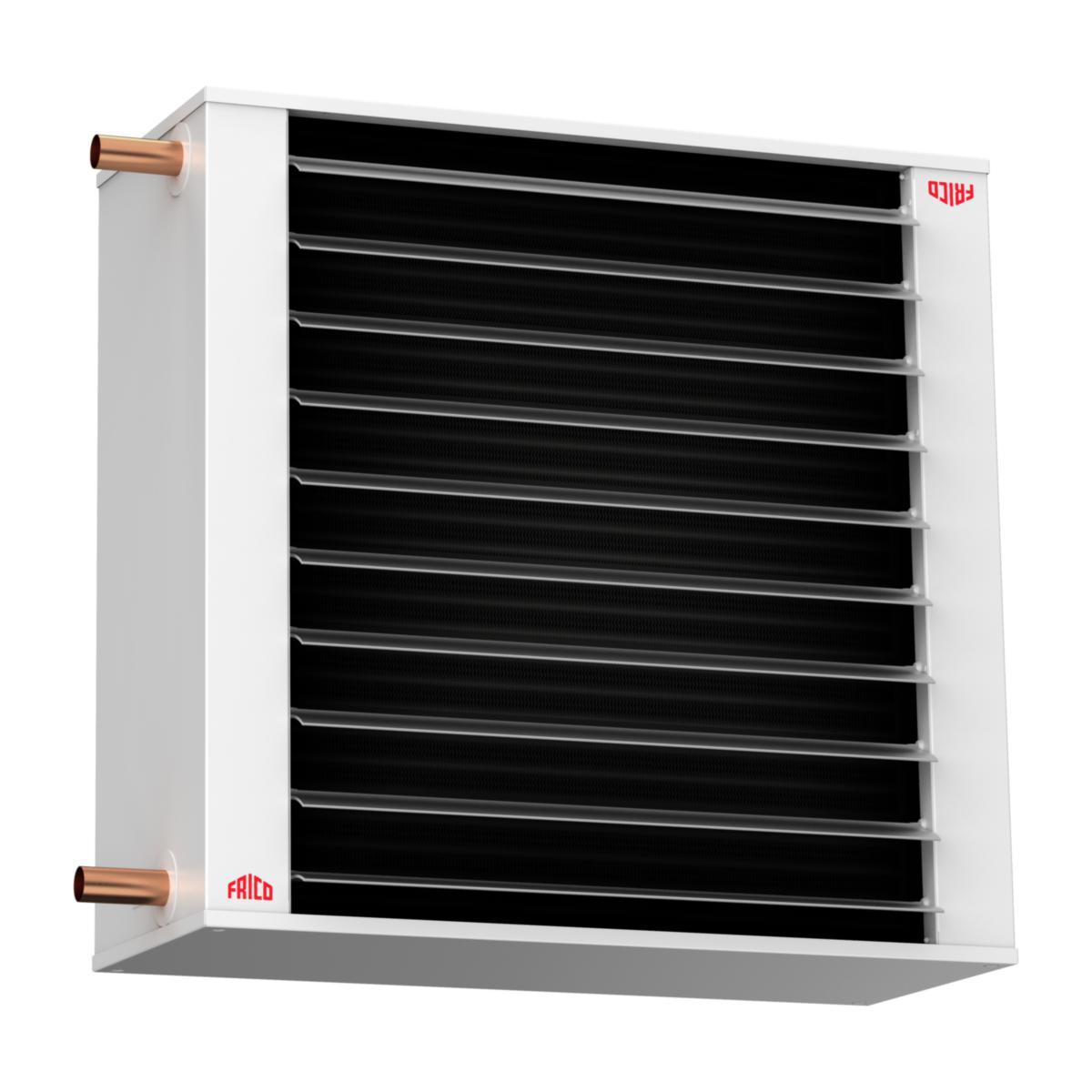

SWL32 Fan Heater
Article number: Suppl. article no:
6702027
466552
to see price and stock
"SWL is a fan heater with low noise level intended for waterborne heating.
SWL is suitable where heating fans are traditionally used, e.g. warehouses and industrial premises,
but also in environments such as shops and meeting rooms.
It can be mounted either on the wall or on the ceiling. "
SWL is suitable where heating fans are traditionally used, e.g. warehouses and industrial premises,
but also in environments such as shops and meeting rooms.
It can be mounted either on the wall or on the ceiling. "
- Article number: 6702027
- Suppl. article no: 466552
- Ean no: 7393410841060
- Material class PEZ100
Technical data
- Width: 691 mm
- Depth: 357 mm
- Height: 671 mm
- Air volume: 3500-5820 m³/h
- Weight including filling: 50 kg
- Nominal current: 1.65 A
- Heat emission: 28 kW
- Connection: Soldered end
- Connection voltage: 230 V
- Material heat exchanger: Aluminium/copper
- Adjustable fins on exhaust side: Yes
- Number of phases: 1
- Sound pressure level at height of 5 metres: 46-57 dB(A)
- Nominal diameter: DN 25
- Suitable for in-roof mounting: No
- With suspension: No
- Suitable for wall mounting: Yes
- Fan type: Axial
- Suitable for floor mounting: No
- Max. operating pressure: 1000 kPa
- Free-exhausting: No
- Adjustable induction in exhaust air: No
- Max. throw horizontal: 24 m
- Water content: 3.8 l
- REACH Date: 2024-06-04
- Design: 28 mm
- REACH Information obligation: No
