Frico
Fan air heater CPF Kit, Frico
CPF02 Fan Heater Kit
Article number: Suppl. article no:
6702019
333756
to see price and stock
Intelligent and energy-efficient fan heater. Champ is a quiet, water-borne fan heater with smart and energy-saving functions. Champ is perfect for use in environments where fan heaters are traditionally used, such as industrial buildings and commercial premises, where low noise levels are important. The fan heater can effectively recover residual heat, which reduces energy losses and optimizes energy use. By effectively using residual heat, the need for fossil fuels is also reduced, which in turn reduces the negative impact on the climate.
Champ is equipped with energy-efficient EC motors that enable stepless control of the air flow.

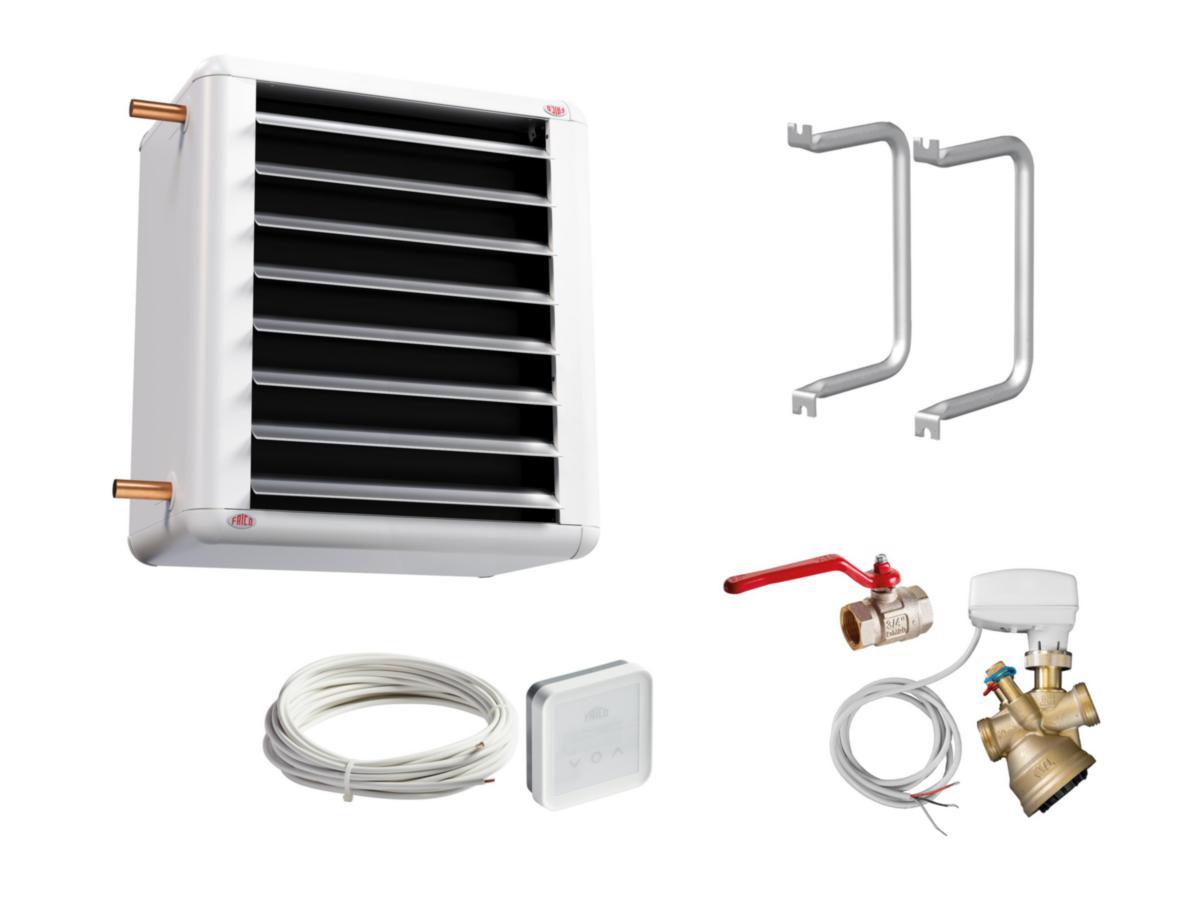

Included in CPF02 Kit;
1 pc CPF02 Fan heater, RSK: 6702012
1 pc FCDC Control for heater fan, RSK: 6704730
1 pair SWB0 Console pair, RSK: 6724910
1 pc VPFC15LF Valve package, RSK: 6704718
Included in CPF12 Kit;
1 pc CPF12 Fan Heater, RSK: 6702015
1 pc FCDC Fan Heater Control, RSK: 6704730
1 pair SWB1 Bracket Pair, RSK: 6724911
1 pc VPFC20 Valve Pack, RSK: 6704720
Champ is equipped with energy-efficient EC motors that enable stepless control of the air flow.
Included in CPF02 Kit;
1 pc CPF02 Fan heater, RSK: 6702012
1 pc FCDC Control for heater fan, RSK: 6704730
1 pair SWB0 Console pair, RSK: 6724910
1 pc VPFC15LF Valve package, RSK: 6704718
Included in CPF12 Kit;
1 pc CPF12 Fan Heater, RSK: 6702015
1 pc FCDC Fan Heater Control, RSK: 6704730
1 pair SWB1 Bracket Pair, RSK: 6724911
1 pc VPFC20 Valve Pack, RSK: 6704720
- Article number: 6702019
- Suppl. article no: 333756
- Ean no: 7393410548044
- Material class PEZ100
Technical data
- Width: 515 mm
- Depth: 430 mm
- Height: 525 mm
- Air volume: 1100-1700 m³/h
- Weight including filling: 20 kg
- Nominal current: 0.7 A
- Heat emission: 8.7 kW
- Connection: Soldered end
- Connection voltage: 230 V
- Material heat exchanger: Aluminium/copper
- Adjustable fins on exhaust side: Yes
- Number of phases: 1
- Sound pressure level at height of 5 metres: 45-55 dB(A)
- Nominal diameter: DN 20
- Suitable for in-roof mounting: No
- With suspension: Yes
- Suitable for wall mounting: Yes
- Max. operating pressure: 1000 kPa
- Free-exhausting: Yes
- Adjustable induction in exhaust air: No
- Suitable for floor mounting: No
- Max. throw horizontal: 11 m
- Water content: 1.3 l
- REACH Date: 2024-06-04
- REACH Information obligation: No
