Frico
Air curtain PAF25__, Frico
PAF2515W AIRCURTAIN FRICO PAMIR VATTENVÄRME UTANPÅLIGGAN
Article number: Suppl. article no:
6703920
246829
to see price and stock

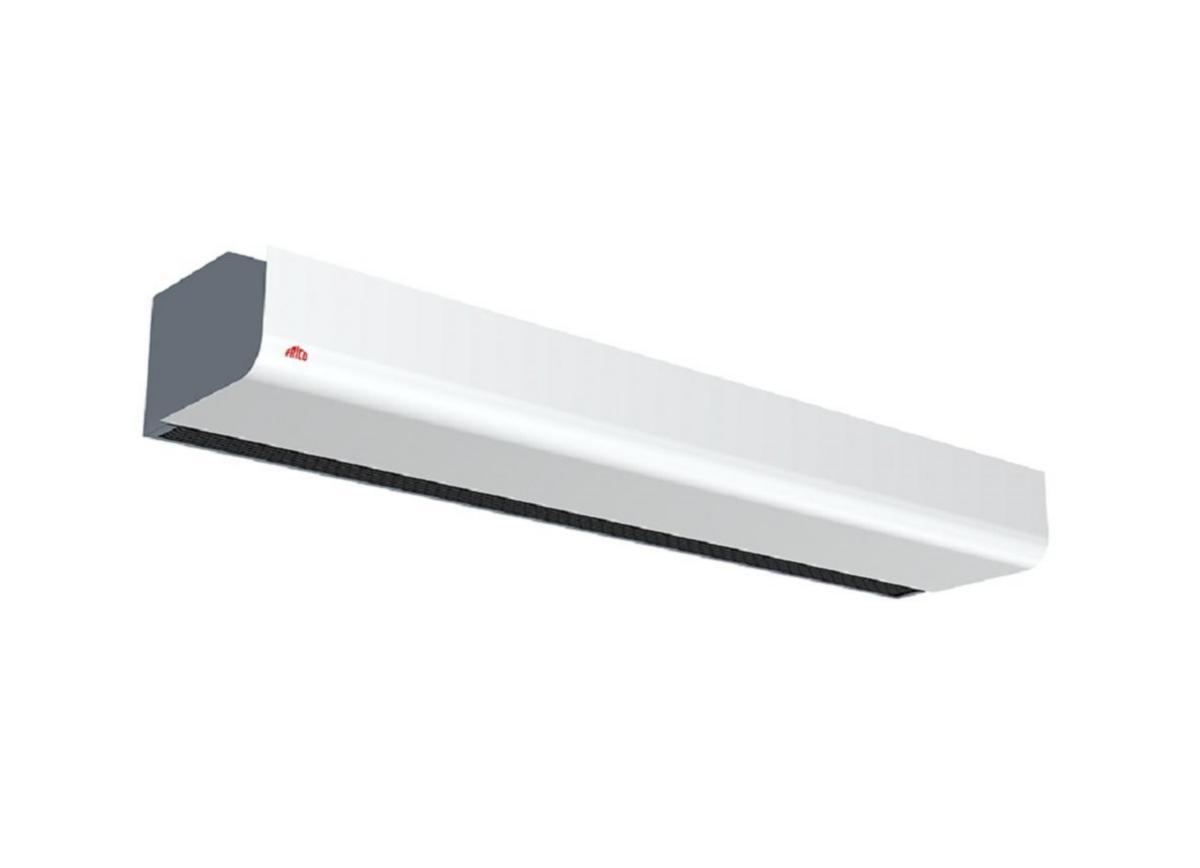

Air curtain Pamir PAF25__, for waterborne heat, for surface mounting. powder coated RAL9016.
- Article number: 6703920
- Suppl. article no: 246829
- Material class PEZ110
Technical data
- Connection voltage of fans: 230 V
- Number of fan settings: 100
- Width: 1560 mm
- Depth: 345 mm
- Colour: White
- Height: 230 mm
- With water-side controls: No
- Cassette model: No
- Suitable for low-temperature heating: No
- Max. input power fans: 0.14 kW
- Max. sound level (at a distance of 3 metres): 70 dB(A)
- Max. mounting height (exhaust height): 2.5 m
- Max. input current of fans: 0.6 A
- Max. door width: 1.5 m
- Max. heating power 60/40 - 20 °C: 8.49 kW
- Max. heating power 90/70 - 20 °C: 19.24 kW
- With control panel: No
- With air filter: Yes
- Model: Free-hanging
- Position of water connection: Top
- RAL-number: 9016
- Outlet pattern: Adjustable
- Max. air volume: 2100 m³/h
- With wireless remote control: No
- REACH Date: 2024-06-04
- GWP-tot (A1-A3): 187,6555 kgCO2e/ST
- Design: PAF2515W
- REACH Information obligation: No
