Work Tank Balancing Vessel for Heat Pumps UKV, Nibe

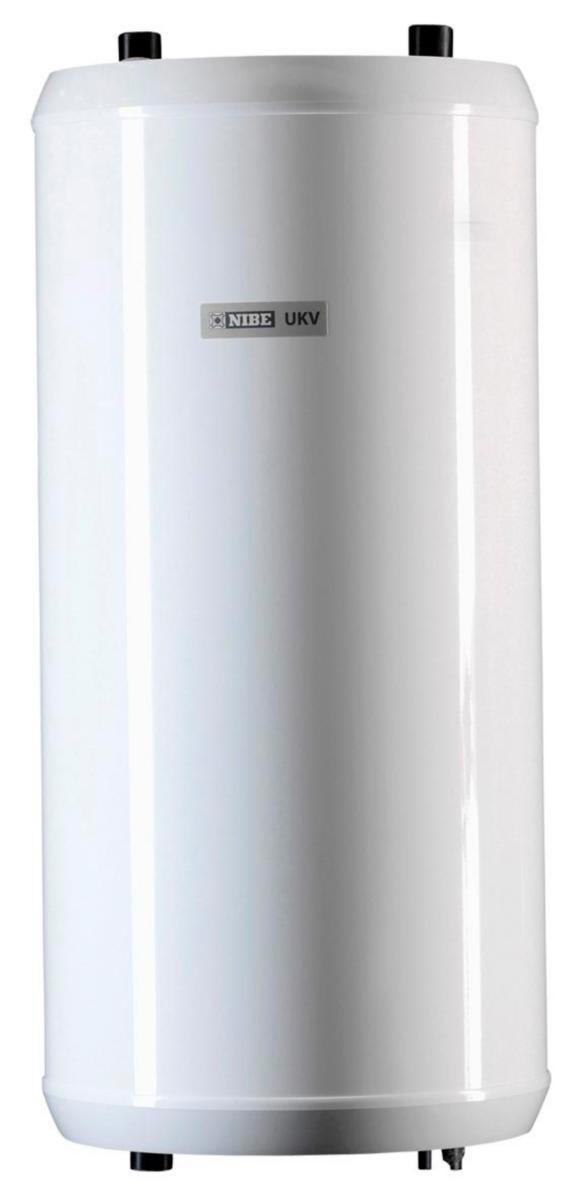

UKV 100 VOLUME VESSEL NIBE FOR HEAT PUMPS
Article number: Suppl. article no:
6861936
088207
to see price and stock
Insulated accumulator tank in steel in order to increase the volume in the heating system.
- Article number: 6861936
- Suppl. article no: 088207
- Material class PEQ140
Technical data
- Packagin Size: 1 ST/4 ST
- Volume: 100 l
- Max. operating pressure: 6 bar
- Height: 1010 mm
- Diameter: 600 mm
- Connection 1: Internal thread
- Connection size 1: 1 inch
- Material casing: Steel
- With insulation: Yes
- Material tank: Steel
- Max. temperature: 95 °C
- Suitable for central heating: Yes
- Suitable for heat pump: Yes
- Material insulation: Polyurethane (PUR)
- With connection temperature sensor: No
- With immersion tube: No
- With electrical element: No
- Connection 2: Internal thread
- Number of connections of temperature sensor: 3
- Number of immersion tubes: 3
- Diameter without insulation: 500 mm
- Surface protection inner side: Untreated
- Surface protection outer side: Coated
- Connection size 2: 1 inch
- REACH Date: 2024-01-23
- Type: UKV100
- Max operating temperature: +95 °C
- Design: UKV 100
- REACH Information obligation: No
