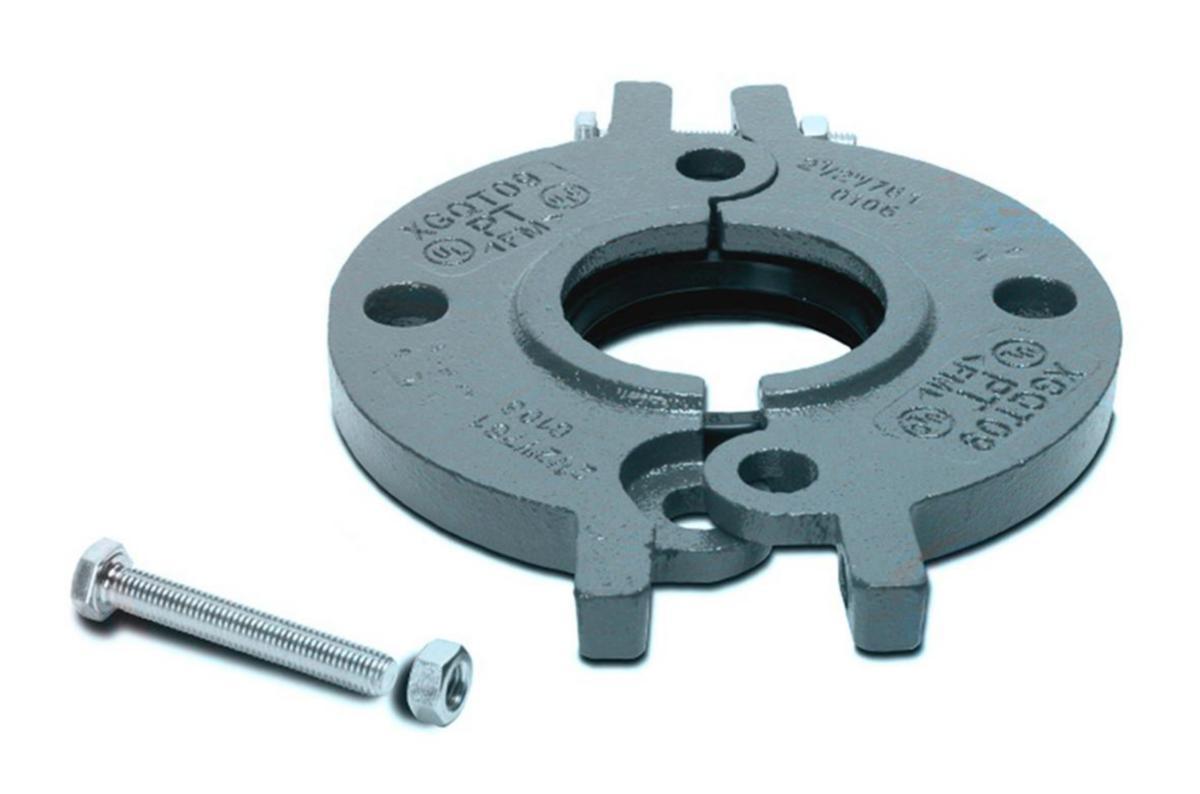

Grooved split flange, Galvanized
Grooved galv. split ada flange DN125-PN16
Article number: Suppl. article no:
1356142
GSF16G5
to see price and stock
Split flange (GSF)
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
- Article number: 1356142
- Suppl. article no: GSF16G5
- Replaces art.nbr: 19055596
- Material class PJB480
Technical data
- Packagin Size: 1 PCS/6 PCS/180 PCS
- Nominal diameter: DN 125
- Pitch circle: 210 mm
- Pipe diameter: 139.7 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight: 3.42 kg
- Diameter bolt hole: 18 mm
- Number of bolt holes: 8
- Material: Steel
- Flange compression class: PN 16
- Outer diameter of flange: 250 mm
- Surface protection: Hot-dip galvanised
- REACH contains candidate substances: Bis(α,α-dimethylbenzyl) peroxide
- REACH Date: 2025-06-27
- REACH Information obligation: Yes
