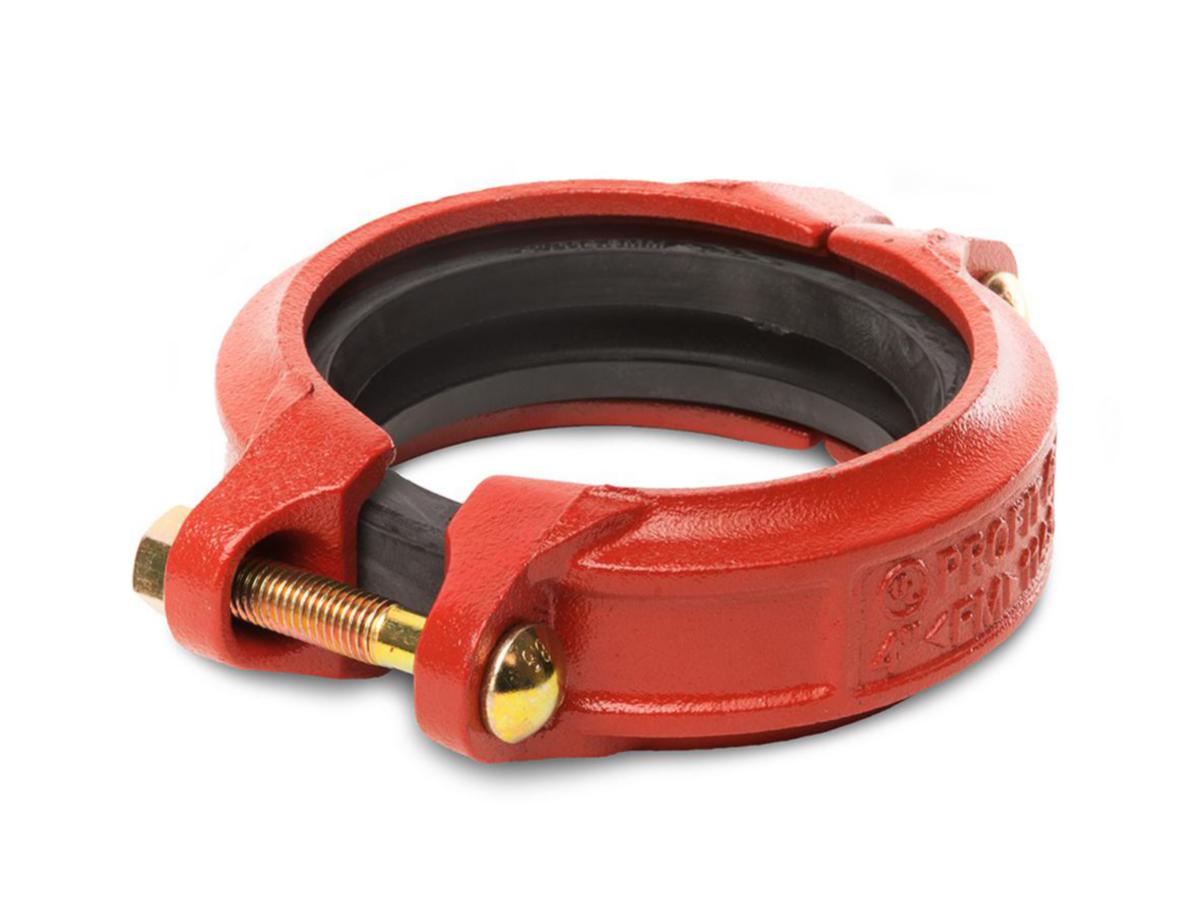

Grooved coupling Flexible, Red
Grooved flexibel red coupling DN150
Article number: Suppl. article no:
1652229V
GKFR6
to see price and stock
- Article number: 1652229V
- Suppl. article no: GKFR6
- Ean no: 7333123074775
- Replaces art.nbr: 19045698
- Material class PJB300
Technical data
- Packagin Size: 1 PCS/10 PCS/240 PCS
- Nominal diameter connection 1: DN 150
- Nominal diameter connection 2: DN 150
- Outer pipe diameter connection 1: 168.3 mm
- Outer pipe diameter connection 2: 168.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 2.11 kg
- Torque: 90-100 Nm
- Connection 1: Ribbing groove (groove coupling)
- Connection 2: Ribbing groove (groove coupling)
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Length: 50 mm
- Sleeve diameter: 18 mm
- Bolt dimension (metric): 12
- Surface protection connection 1: Powder coating
- Surface protection connection 2: Powder coating
- Reducing: No
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bis(α,α-dimethylbenzyl) peroxide
- REACH Information obligation: Yes
