WC fixture Sigma SAWA inb.cistern 12cm, Geberit
GEBERIT DUOFIX SIGMA 112CM WC-FIXTURE, SAWA
Article number: Suppl. article no:
8000315
111.924.00.1
to see price and stock

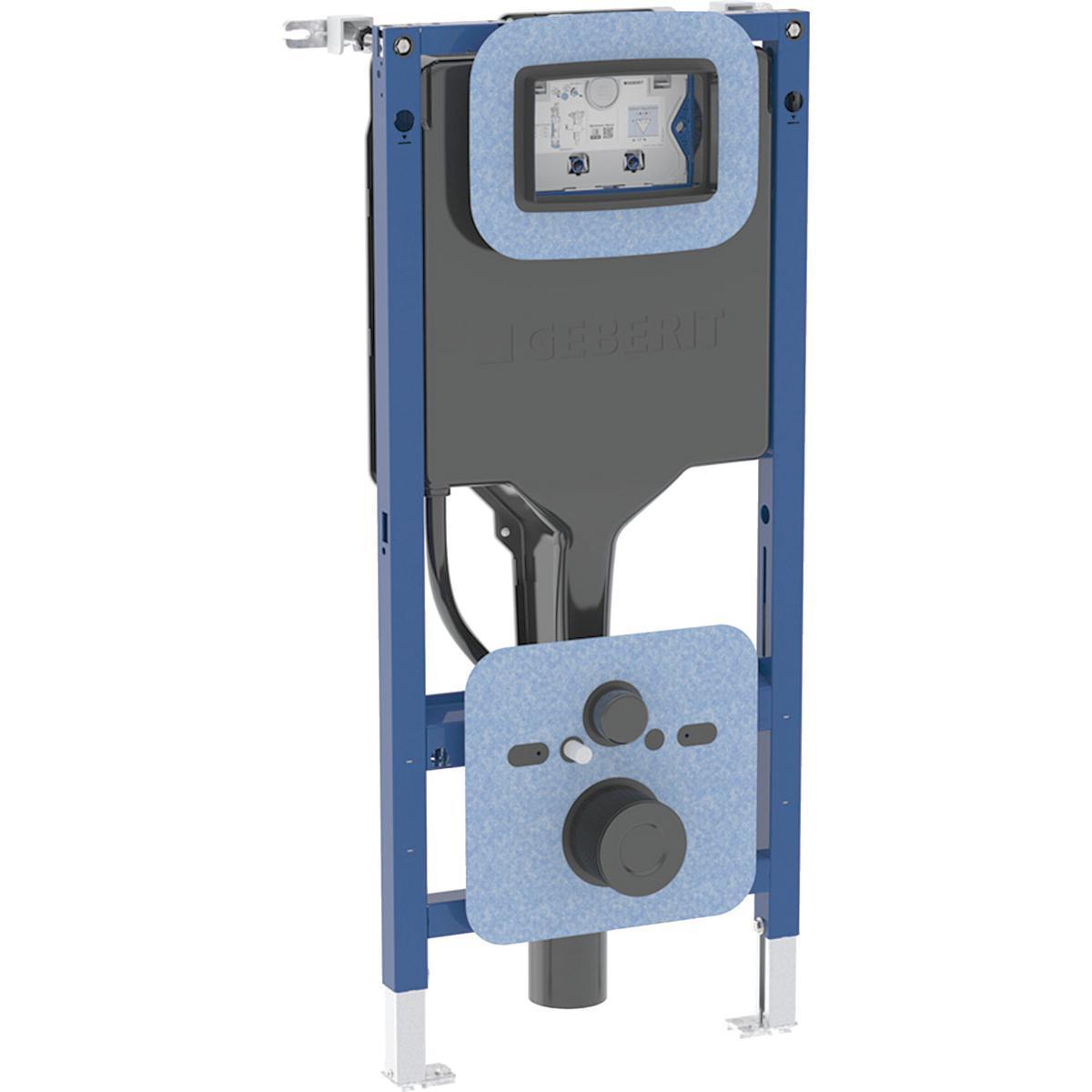

Geberit element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, PEX connection, SAWA
For wet room walls with waterproofing foil. Approved for most waterproofing systems with foil. Geberit Sigma flush plates are suitable for this fixture,
For wet room walls with waterproofing foil. Approved for most waterproofing systems with foil. Geberit Sigma flush plates are suitable for this fixture,
- Article number: 8000315
- Suppl. article no: 111.924.00.1
- Ean no: 4064746035364
- Material class PCJ131
Technical data
- Tap water connection: External thread
- Width: 500 mm
- Depth: 135 mm
- Spacer under reservoir: No
- Height: 1120 mm
- Adjustable width: No
- Adjustable flushing water quantity: Yes
- Adjustable toilet height: No
- Adjustable depth: No
- Adjustable height: No
- Quality class flushing reservoir: Polyethylene (PE)
- Suitable for shelf operation: No
- Flushing water quantity: 4-7 l
- Suitable for electrical operation: Yes
- Suitable for front operation: Yes
- Suitable for pneumatic operation: Yes
- Material flushing reservoir: Plastic
- With stop valve: Yes
- With mounting material for the toilet: Yes
- With mounting material for the element: Yes
- With bracket suitable for floor mounting: Yes
- With supply and drainage fittings: Yes
- With contact sound insulation set: No
- With bracket suitable for low wall mounting: No
- With drainage bend: Yes
- With bracket suitable for high wall mounting: Yes
- Min. shelf height: 1120 mm
- Size of tap water connection: 1/2 inch
- Frame suitable for wc with offset > 60cm: Yes
- Self-bearing construction: Yes
- Flushing: Two quantities
- Surface protection: Lacquered
- Load capacity >= 400 kg according to EN 997: No
- With anti-condensation insulation: Yes
- Suitable for manual operation: Yes
- Number of tap water connections: 1
- Battery power supply: No
- Suitable for shower toilet: Yes
- Suitable for drywall: Yes
- Suitable for solid wall: No
- With electrical connection: No
- Centre distance of toilet attachment: 18 cm and 23 cm
- With control panel: No
- Suitable for sanitary installation wall system: Yes
- Programmable with remote control: No
- Suitable for infrared operation: Yes
- Suitable for toilets with a reduced contact area: No
- Suitable for radar operation: Yes
- Suitable for flushing flow throttling: Yes
- With building management system connection: No
- With fan connection: No
- With front cladding: No
- With delayed filling process: No
- With maintenance opening: Yes
- With flushing bend: Yes
- Outer pipe diameter flushing: 45 mm
- Outer pipe diameter drainage: 90 mm
- Suitable for tap water connection left: Yes
- Suitable for tap water connection right: Yes
- Suitable for tap water connection atop: Yes
- REACH Date: 2024-09-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
