a-collection

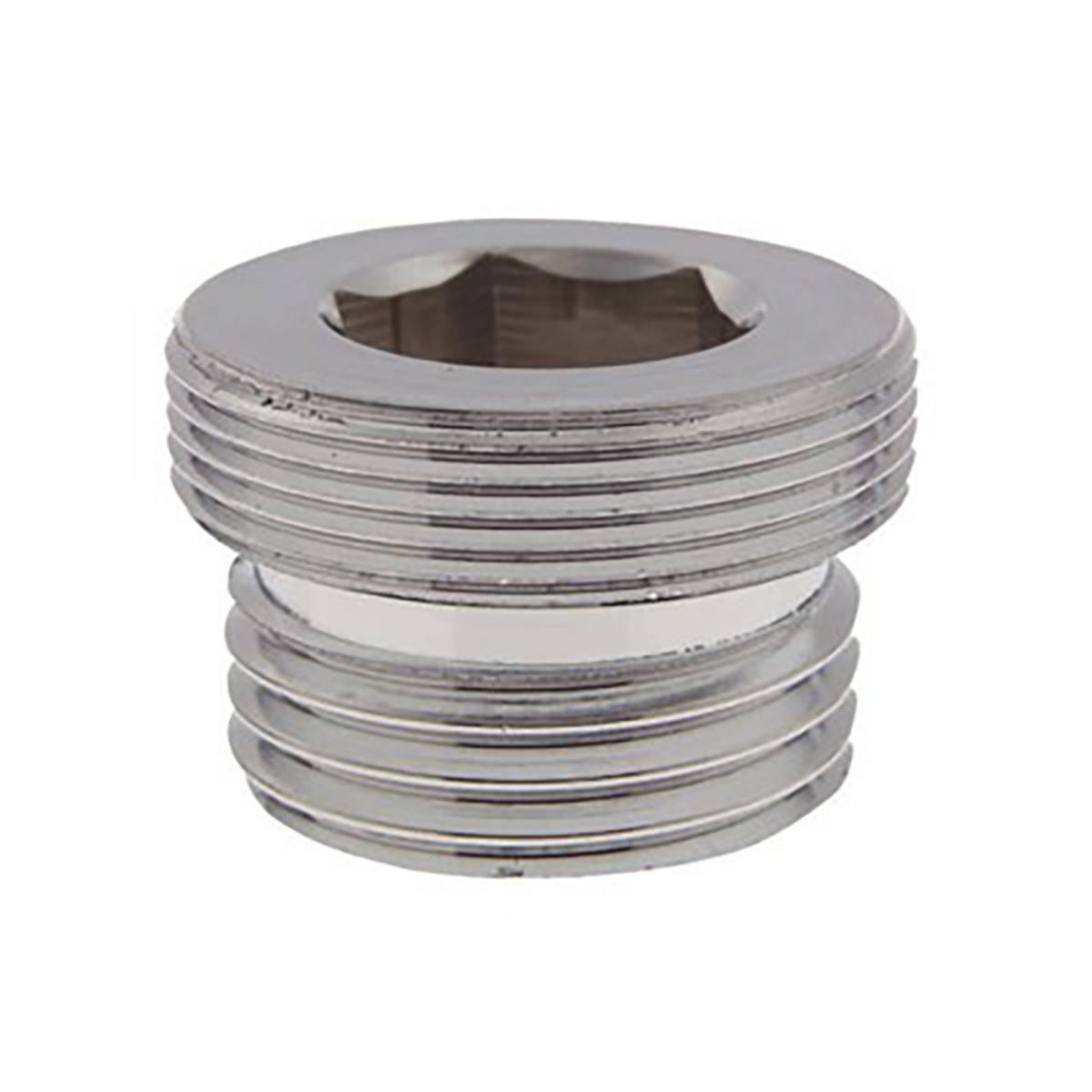

Transition nipple with external thread, a-collection
TRANSITION NIPPLE M24X1 X G15 MALE, A-COLLECTION
Article number: Suppl. article no:
8241183
8241183
to see price and stock
Transition nipple with external thread and gasket.
- Article number: 8241183
- Suppl. article no: 8241183
- Ean no: 7340080792512
- Replaces art.nbr: 8187011
- Material class PCO01B
- This is an alternative to item 8912156
Technical data
- Packagin Size: 1 ST/50 ST/200 ST/7200 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1/2 inch (15)
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Material connection 1: Brass
- Material connection 2: Brass
- Outer pipe diameter connection 2: 24 mm
- With drain valve: No
- With de-aerator: No
- Shape: Straight
- FM quality mark: No
- Capped: No
- Eccentric: No
- System specific: No
- Medium temperature (continuous): 0-95 °C
- Reducing: No
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 0 °
- With buffer stud: No
- LPCB quality mark: No
- UL quality mark: No
- ULC quality mark: No
- KIWA certified: No
- VdS quality mark: No
- Length of connection 1: 16 mm
- DIN-CERTCO certificate: No
- High tensile strength: No
- KOMO certified: No
- With connection indicator: No
- With thermal insulation: No
- Certified according to NF 545: No
- REACH Date: 2026-02-25
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
