Vatette

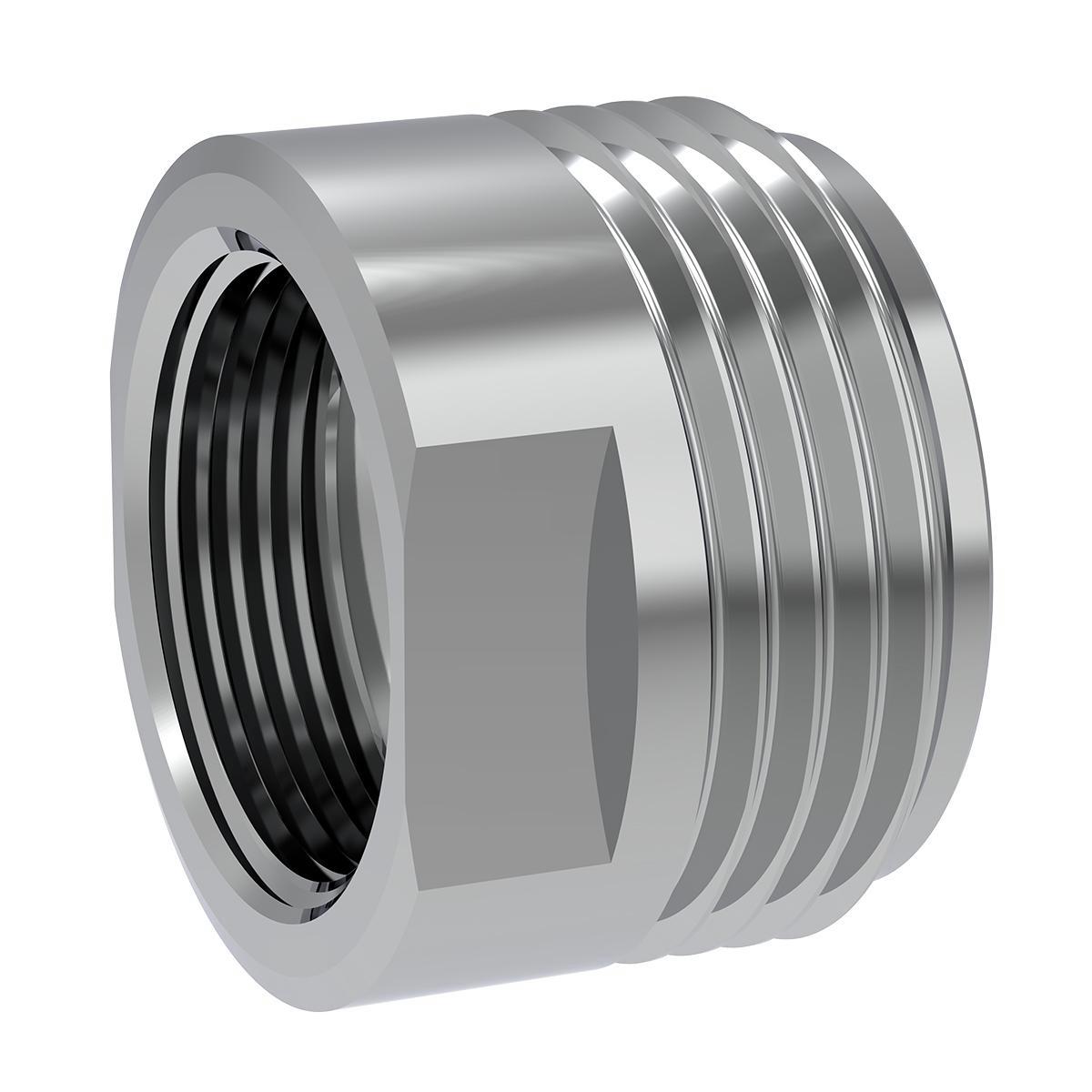

Transition nipple G15 x G20, Vatette
VATETTE TRANSITION NIPPLE CHR. G20 MALE xG15 FEMALE, W.GASKET
Article number: Suppl. article no:
1962346
FG0640866
to see price and stock
G 1/2 internal pipe thread x G 3/4 external pipe thread
- Article number: 1962346
- Suppl. article no: FG0640866
- Ean no: 7393792105262
- Material class PCP63A
Technical data
- Packagin Size: 1 PCS/25 PCS/2750 PCS
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 3/4 inch (20)
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Material connection 1: Brass
- Material connection 2: Brass
- Shape: Straight
- Medium temperature (continuous): -50-120 °C
- Max. operating pressure at 20 °C: 16 bar
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at max. medium temperature: 16 bar
- REACH Date: 2024-10-18
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,4090 kgCO2e/ST
- REACH Information obligation: Yes
