Trio
Mixer bracket 150 c/c, Design Line concealed piping lead-free, Trio
TRIO MIXER BRACKET 150C/C D-L 16 PEX/ALUPEX
Article number: Suppl. article no:
8265215
8265215
to see price and stock
Lead-free and chrome-plated mixer bracket 150 cc, which is intended for concealed piping.
Connects with G20 to the mixer.
Detachable couplings and plumbing screw included.
Adapted to the new industry rules in 2021, with space for waterproofing.

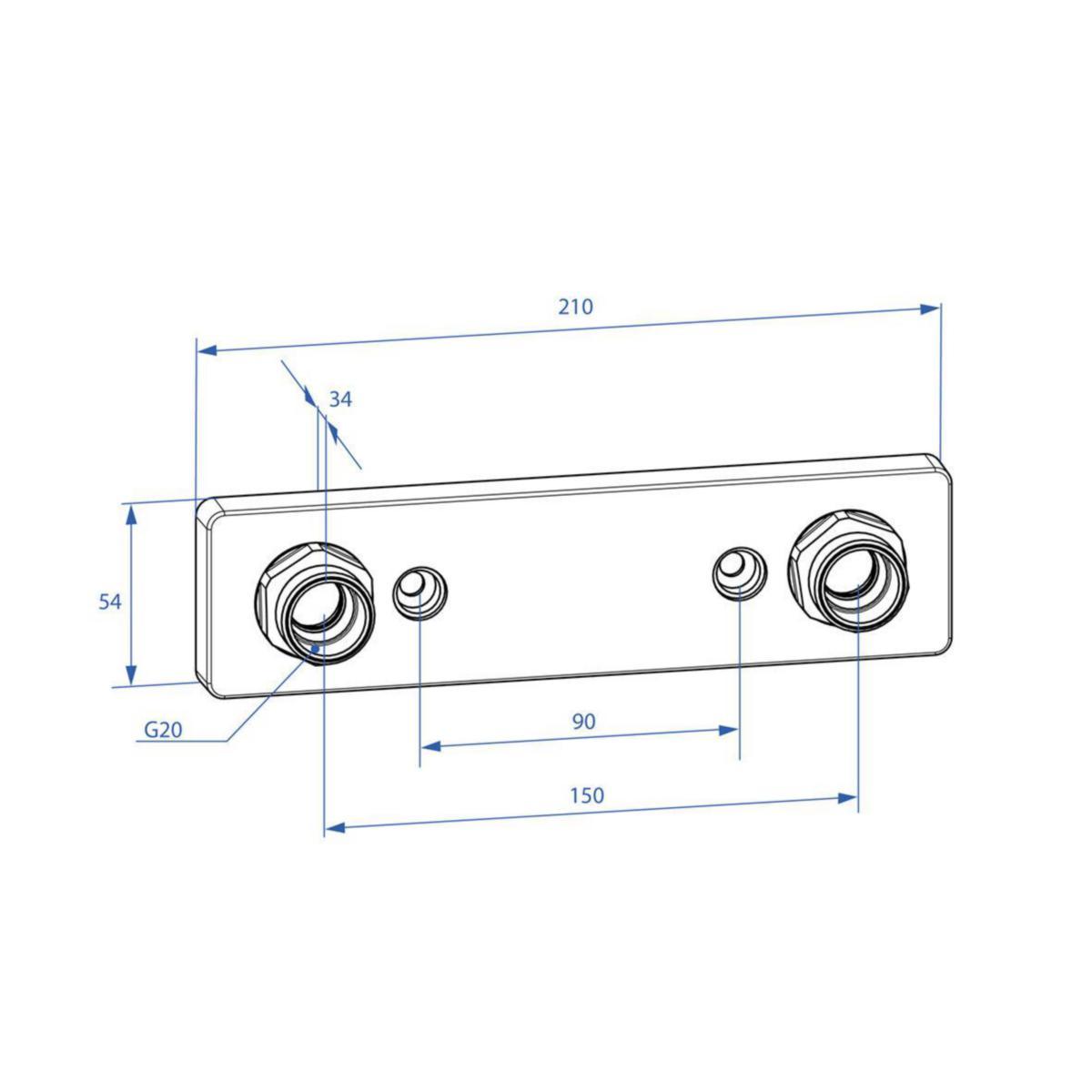

Dimensions: 210x54 mm.
Screw hole: 90cc.
Connects with G20 to the mixer.
Detachable couplings and plumbing screw included.
Adapted to the new industry rules in 2021, with space for waterproofing.
Dimensions: 210x54 mm.
Screw hole: 90cc.
- Article number: 8265215
- Suppl. article no: 8265215
- Ean no: 7320129780168
- Replaces art.nbr: 8187507 8265152
- Material class PCO13B
- This is an alternative to item 8265005 8265262
Technical data
- Packagin Size: 1 ST/15 ST
- Centre-to-centre distance of connections: 150 mm
- Connection: External thread cylindrical BSPP-G (ISO 228-1)
- Suitable for pipe diameter: 16 mm
- Connection sizes: 3/4 inch (20)
- Suitable for plastic multi-layer pipes: Yes
- Suitable for copper tube: No
- Suitable for plastic tube: Yes
- Type of pipe connection: Concealed
- System specific: No
- Colour: Chrome
- Surface protection: Chromium-plated
- Material: Other
- Surface treatment: Polished
- Number of connection points: 2
- Width mounting plate: 210 mm
- Depth mounting plate: 14 mm
- Shape: Rectangular
- Height mounting plate: 54 mm
- With stop valve: No
- Surface finishing: Glossy
- Wall thickness: 2.0 mm
- Free radial space for protective tube/waterproofing membrane (width): 37 mm
- Free axial space for protective tube/waterproofing membrane (depth): 9 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2023-04-20
- REACH Information obligation: No
