Trio

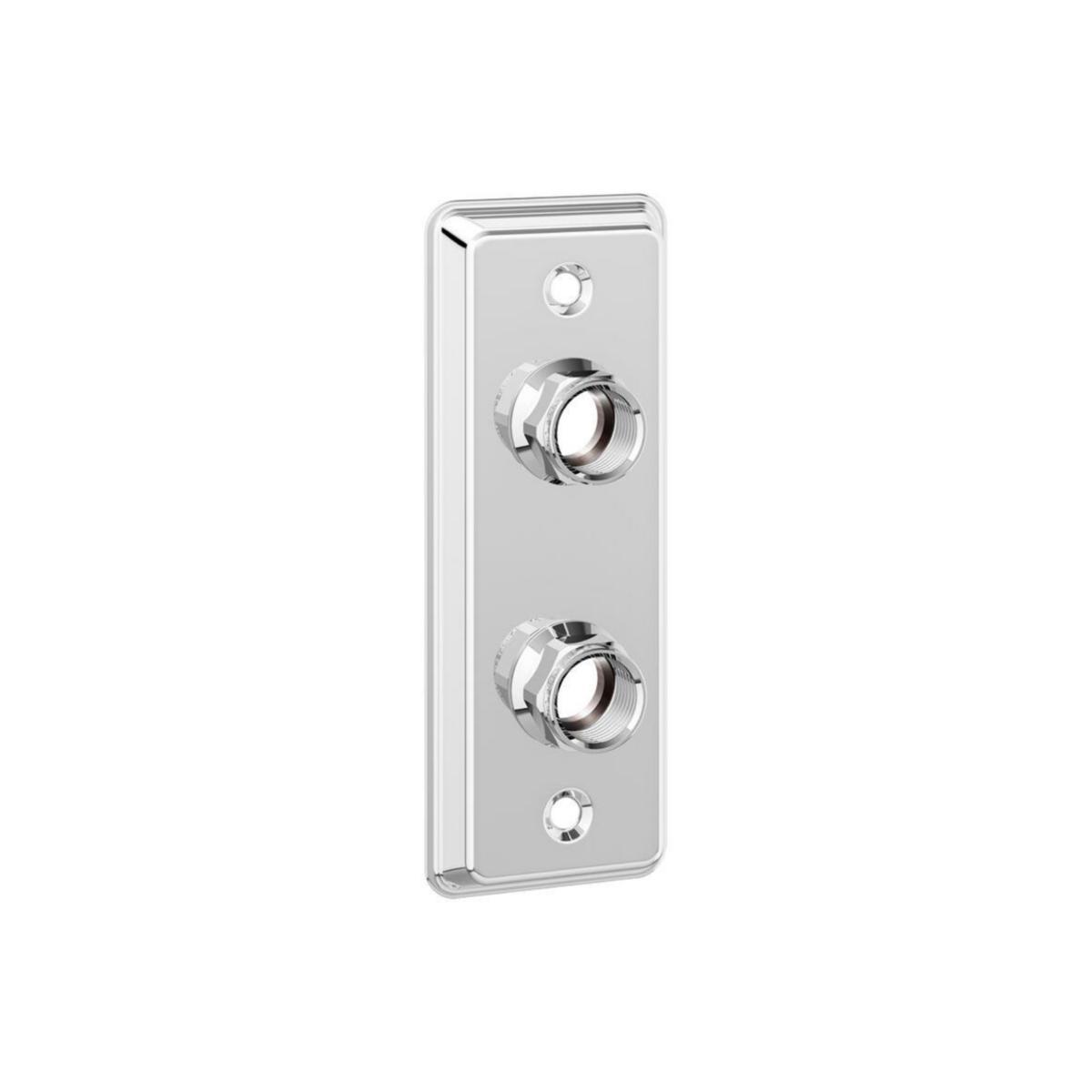

Wall plate 2-hole 60cc CU, Trio
TRIO WALL BRACKET DOUBLE 60C/C G15-ø12/15CU.STAINLESS. POL
Article number: Suppl. article no:
8505113
8505113
to see price and stock
Stainless steel double wall washer with internal thread G15. Including detachable couplings for Ø12 / 15 Cu and plumbing screw.
Adapted to new industry rules 2021 with space for waterproofing and 60 cc installations.
Tray dimensions: 160 × 60 mm. Screw hole 120 cc.
Adapted to new industry rules 2021 with space for waterproofing and 60 cc installations.
Tray dimensions: 160 × 60 mm. Screw hole 120 cc.
- Article number: 8505113
- Suppl. article no: 8505113
- Ean no: 7320129780441
- Material class PCO13B
- This is an alternative to item 8505043
Technical data
- Packagin Size: 1 ST/40 ST
- Centre-to-centre distance of connections: 60 mm
- Connection: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection sizes: 1/2 inch (15)
- Suitable for plastic multi-layer pipes: No
- Suitable for copper tube: Yes
- Suitable for plastic tube: No
- Type of pipe connection: Concealed
- System specific: No
- Colour: Stainless steel
- Material: Stainless steel
- Surface treatment: Untreated
- Number of connection points: 2
- Width mounting plate: 60 mm
- Depth mounting plate: 14 mm
- Shape: Rectangular
- Height mounting plate: 160 mm
- With stop valve: No
- Surface finishing: Glossy
- Free radial space for protective tube/waterproofing membrane (width): 37 mm
- Free axial space for protective tube/waterproofing membrane (depth): 9 mm
- Type approval according to BBR/EKS: Yes
- REACH Date: 2023-04-21
- REACH Information obligation: No
