Trio

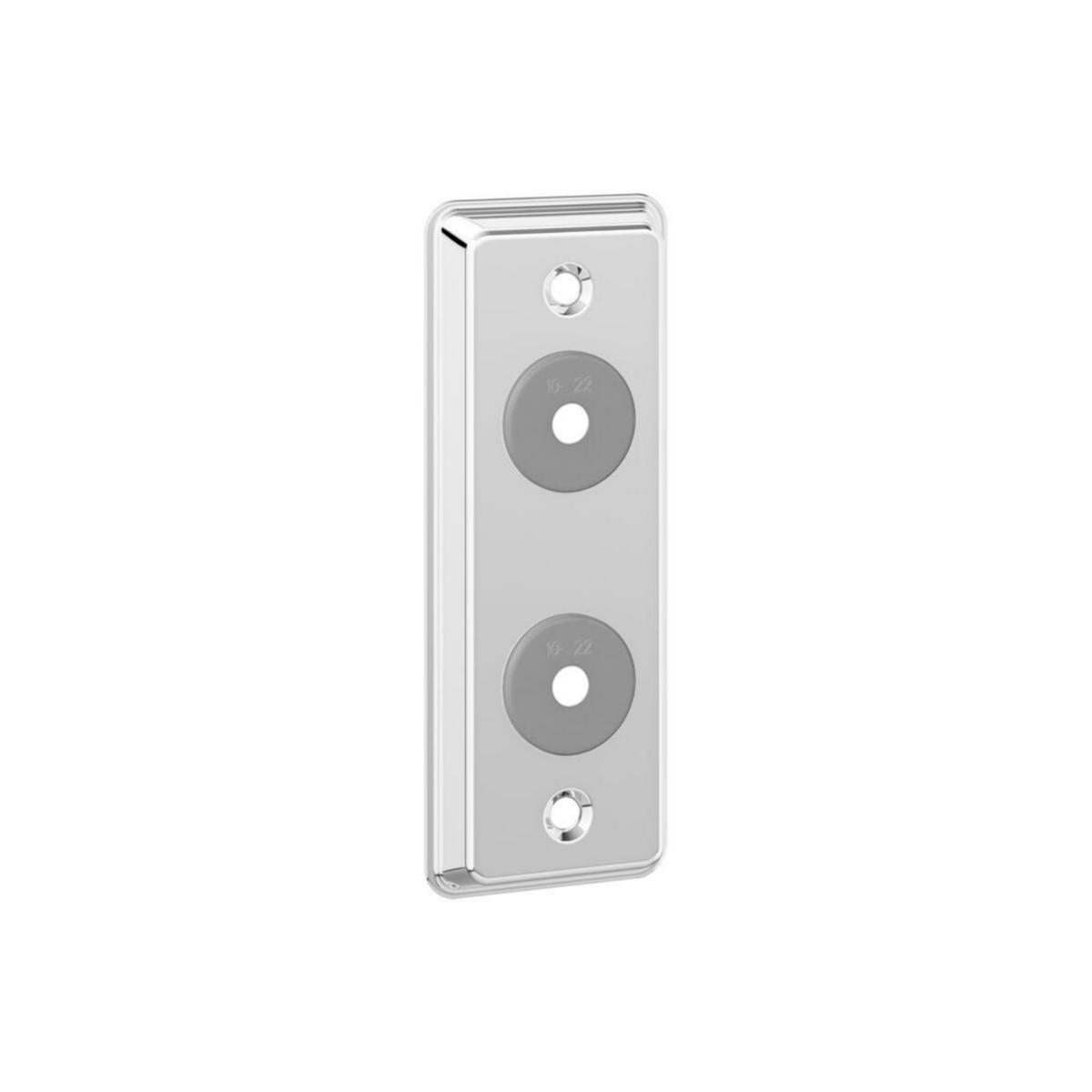

Cover plate 2-hole 60 c / c, Trio
TRIO COVER PLATE DOUBLE 60C/C ø10-22MM.STAINLESS. POLISHED
Article number: Suppl. article no:
8505108
8505108
to see price and stock
Stainless steel, polished cover plate with rubber seal, for two pipes. For pipe type Ø10-22 mm.
Adapted to the new industry rules 2021, with space for waterproofing and 60 cc installations.
Screw hole 120 cc. Dimensions: 160x60 mm.
Adapted to the new industry rules 2021, with space for waterproofing and 60 cc installations.
Screw hole 120 cc. Dimensions: 160x60 mm.
- Article number: 8505108
- Suppl. article no: 8505108
- Ean no: 7320129780342
- Material class PCO13B
- This is an alternative to item 8505044
Technical data
- Packagin Size: 1 ST/100 ST
- Rosette length: 60 mm
- Distance centre-to-centre: 60 mm
- Shape: Rectangular
- Colour: Stainless steel
- Rosette height: 14 mm
- Rosette width: 160 mm
- Material rosette: Stainless steel
- With thread: No
- Type of fastening: Screwed
- Rosette type: Sealed ring
- Outer pipe diameter: 10-22 mm
- Surface protection: Untreated
- Suitable for number of pipes: 2
- REACH Date: 2023-04-17
- REACH Information obligation: No
