Vatette

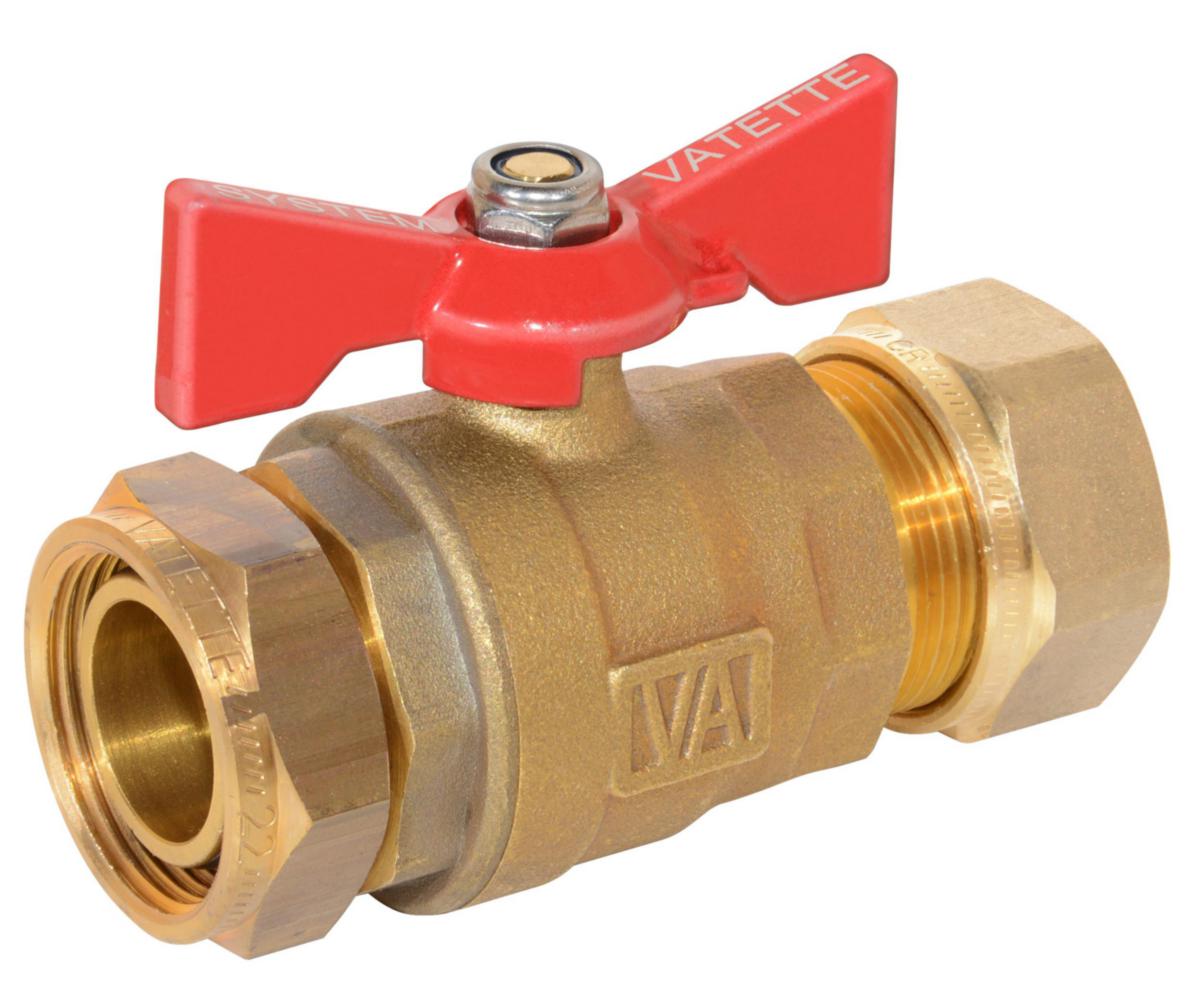

Shut-off Valve for Distributor, Vatette
LEFT FULL FLOW VALVE STR, RED 22MM DN20 CLAMP RINGXRUNN. NUT
Article number: Suppl. article no:
8547099
FG081115141
to see price and stock
For connection to pipes R20 x leaking nut Dy 22 for connection to Vatette 22, with knob.
- Article number: 8547099
- Suppl. article no: FG081115141
- Ean no: 7393792104784
- Material class PAP10A
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Nominal diameter connection 1: DN 20
- Nominal diameter connection 2: DN 20
- Article compression class: PN 16
- Connection 1: Compression ring
- Connection 2: Compression ring
- Full bore: Yes
- Material ball: Stainless steel
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material primary spindle seal: NBR (nitrile rubber)
- Material secondary spindle seal: NBR (nitrile rubber)
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference at 20 °C: 16 bar
- Model: Straight
- Material spindle: Brass
- REACH Date: 2024-10-18
- REACH contains candidate substances: Bly
- Design: Straight, red rotary
- REACH Information obligation: Yes
