Vatette

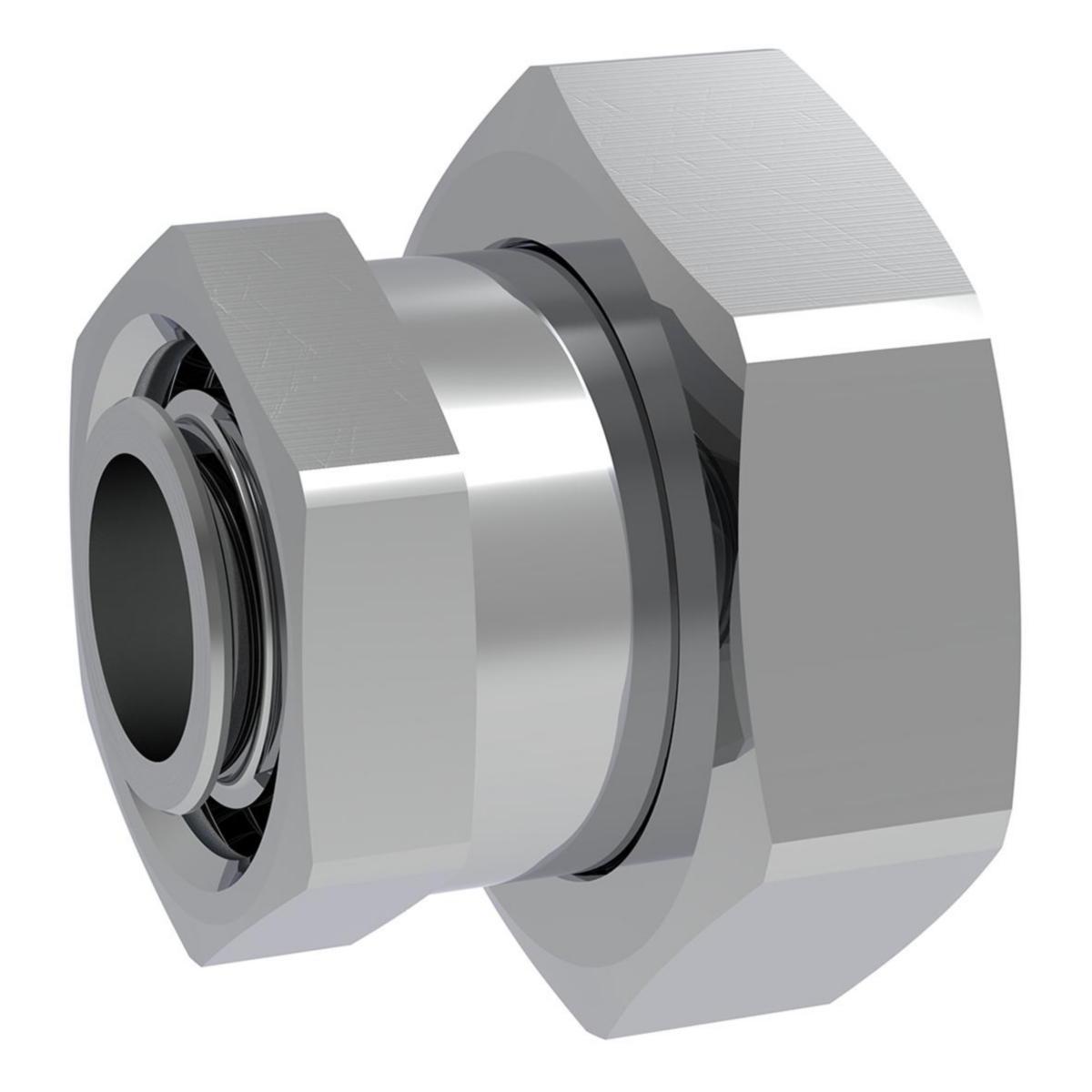

Double nut V6 chrome, Vatette
Vatette Double nut 15(G1/2")xG3/4" crome
Article number: Suppl. article no:
1965625
FG039808020
to see price and stock
For connection to Vatette-end Dy22
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
- Article number: 1965625
- Suppl. article no: FG039808020
- Ean no: 7393792107136
- Material class PAP100
Technical data
- Packagin Size: 1 ST/50 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 20 mm
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- Medium temperature (continuous): 0-120 °C
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Material connection 1: Brass
- Material connection 2: Brass
