Floodlight aFlood LED Tec

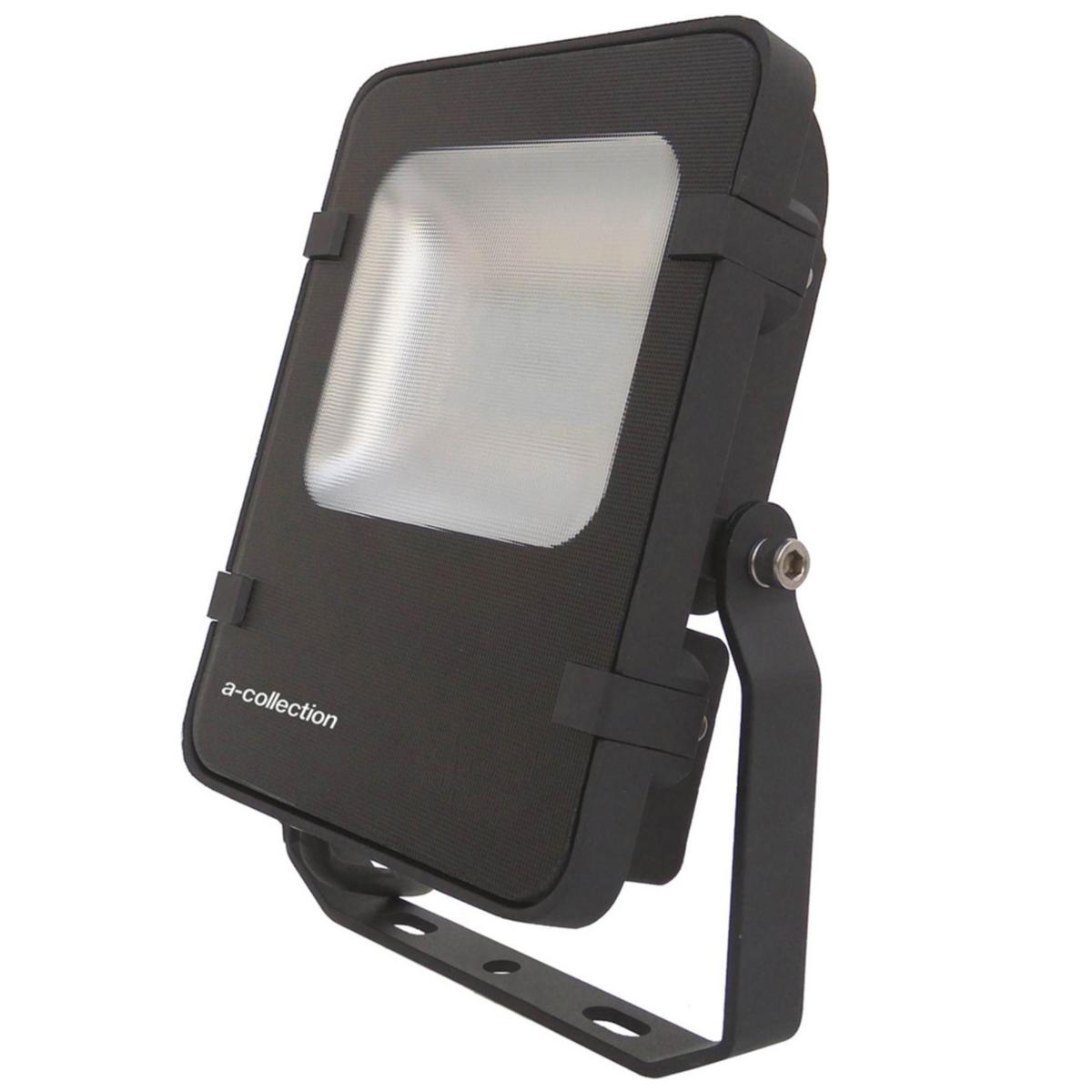

FLOODL LED 12W 4'K 1200LM SYM AFLOOD LED TEC
Article number: Suppl. article no:
7767530
7767530
to see price and stock
Floodlight intended for general indoor and outdoor lighting, for example loading docks, garage driveways and buildings. Unique design with a slim luminaire housing. Strong rust protection thanks to aluminum luminaire housing and bracket with stainless screws. Well suited for outdoor use. D-marked. Tempered front glass with UV-resistant silicone rubber gasket. Symmetrical luminaires up to 48W also suitable as work lighting for mounting on stands 7570106. Pre-assembled suspension bracket in aluminum for mounting on wall, ceiling or stand. The bracket can be removed if necessary to facilitate mounting. Connects with pre-assembled cable and supplied plug (symmetrical) or pre-assembled connection cable (asymmetrical).
Ambient temperature Celsius: Symmetrical: -30° to +50°. Asymmetric: -40° to +50°
Ambient temperature Celsius: Symmetrical: -30° to +50°. Asymmetric: -40° to +50°
- Article number: 7767530
- Suppl. article no: 7767530
- Ean no: 7340080778745
- Material class QU2000
- This is an alternative to item 7761687
Technical data
- Packagin Size: 1 ST/12 ST
- Energy label: E
- Type: aFlood LED Tec Sym
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1200 lm
- Colour temperature: 4000 K
- Lamp type: LED not exchangeable
- Impact strength: IK07
- With light source: Yes
- Degree of protection (IP): IP66
- Height: 175 mm
- Width: 135 mm
- Depth: 42 mm
- Nominal voltage: 230 V
- Colour rendering index CRI: 80-89
- Rated lifetime L70/B50 at 25 °C: 35000 h
- REACH Date: 2025-10-03
- REACH Information obligation: No
