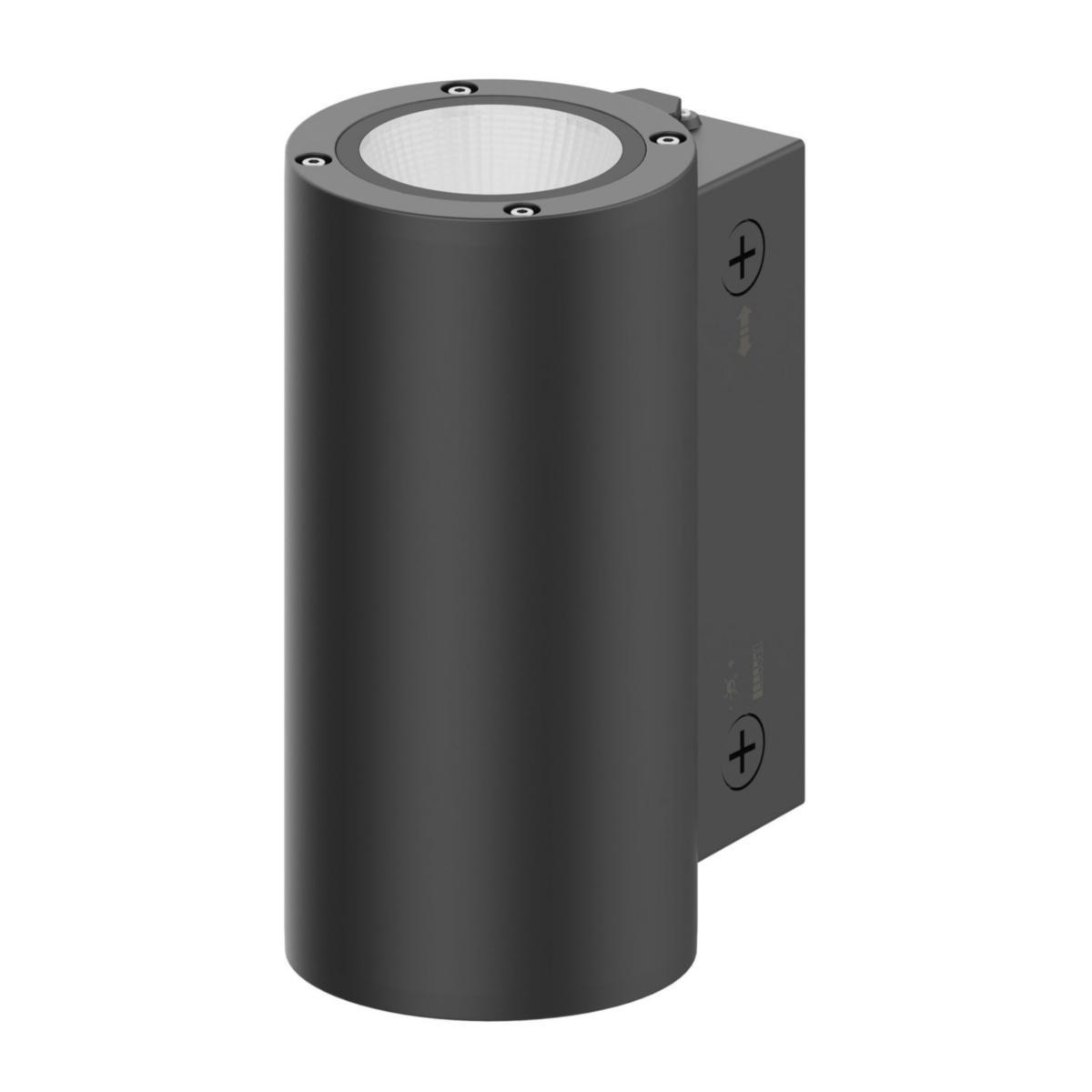

Wall luminaire Urban Wall Vario

URBAN WALL V RD 29W 82227 BK

Article number:

7706923

Suppl. article no:

4099854659683

‌
‌
‌

‌
‌

to see price and stock

LEDVANCE URBAN WALL VARIO is a flexible facade luminaire with adjustable light pattern, power and color temperature – all in one luminaire. Thanks to its robust aluminum construction and IP65 rating, it is well suited for outdoor use even in demanding environments. The luminaire has upward and/or downward light, with replaceable reflectors that provide narrow or wide light distribution. The integrated day/night sensor (On/Off versions), Multi Color and Multi Lumen functions and different light directions make it easy to adapt to both function and aesthetics. Urban Wall Vario is available in black or gray and offers a long service life and high operational stability – a sustainable choice for both commercial and private outdoor environments.

Article number:
7706923
Copy to clipboard
Suppl. article no:
4099854659683
Copy to clipboard
Ean no:
4099854659683
Copy to clipboard
Material class
QT9170
Copy to clipboard

Technical data

Packagin Size: 1 PCS/4 PCS
Design: Round
Max. system power: 29 W
Rated luminous flux according to IEC 62722-2- 1: 1370-2600 lm
Colour temperature: 2200-2700 K
Housing colour: Black
With presence detector: No
With movement sensor: No
With light sensor: Yes
Light distribution: Symmetric
Lamp type: LED not exchangeable
Beam angle: 41-80° - Wide beam
Degree of protection (IP), front side: IP65
Degree of protection (IP), rear side: IP65
Length: 168 mm
Width: 120 mm
Height/depth: 250 mm
Type of control gear: Electronic ballast
Material cover: Glass transparent
Housing material: Aluminium
Surface protection housing: Powder coating
With control gear: Yes
With light source: Yes
Protection class according to IEC 61140: I
Impact strength: IK08
Nominal voltage: 220-240 V
Voltage type: AC
Colour rendering index CRI: 80-89
Light outlet: Direct/indirect
Suitable for workplace according to EN 12464-1: No
Number of poles: 2
Power factor: 0.9
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Dimmable: No
Colour of light: White
Light distributor: Reflector
Luminaire efficacy: 90-94 lm/W
Suitable for built-in mounting: No
Suitable for light line configuration: No
Suitable for emergency lighting: No
Suitable for suspended mounting: No
Suitable for surface mounting: Yes
With air slots: No
Rated lifetime L70/B50 at 25 °C: 109000 h
Rated ambient temperature according to IEC 62722-2-1: -40-45 °C
Suitable for ceiling mounting: No
Type of wiring: Ending
Covering of the luminaire with thermally insulating material possible: No
Operation by Bluetooth: No
Photobiological safety according to EN 62471: RG1
Colour consistency (McAdam ellipse): SDCM3
Beam angle adjustable: Positions
Colour of light adjustable: Positions
Compatible with Amazon Alexa: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Constant light output (CLO): No
Luminous flux adjustable: Positions
Max. number of luminaires per miniature circuit breaker B16 (MCB): 18
Max. number of luminaires per miniature circuit breaker C16 (MCB): 23
IFTTT support available: Yes
Exchangeable control gear: Yes
Energy efficiency class of the light source according to EU regulation 2019/2015: D
Compatible with Casambi: No
Suitable for wall mounting: Yes
Nominal current: 135 mA
Connection type: Push-in clamp
Connectable conductor cross section: 0.75 mm²
Ball-proof according to DIN 18032-3: No
Containing product according to 2019/2020/EU: Yes
Suitable for clamp-mounting: No
Max. number of luminaires per miniature circuit breaker C10 (MCB): 14
With switch: No
With mounting material: Yes
REACH Date: 2025-06-01
REACH contains candidate substances: Bly | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) | Triphenyl phosphate
REACH Information obligation: Yes
