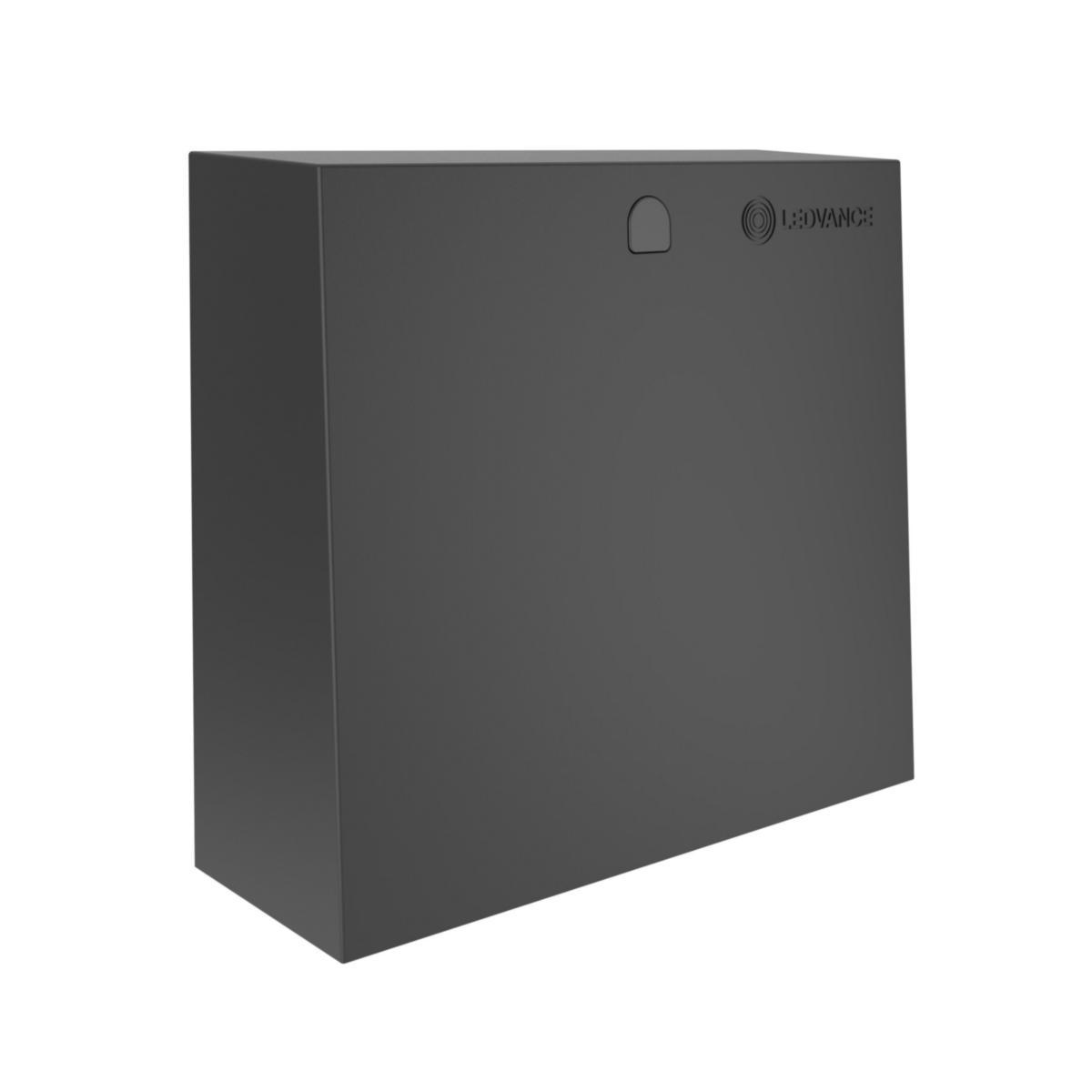

Wall luminaire Urban Wallpack
URBAN WALLPACK 20W 830 840
Article number: Suppl. article no:
7706847
4099854592850
to see price and stock
LEDVANCE URBAN WALLPACK with compact and stylish design and adjustable lumen. Available in two outputs 20 W and 40 W, of which 20 W has adjustable color temperature 3000/4000 K. 40 W comes in either 3000 K or 4000 K. Bright and robust with a long service life of up to 100,000 hours (L80). The luminaire has an asymmetric light distribution of 55° x 135° which provides efficient and even lighting, perfect for facades, industry, schools, warehouses and commercial buildings. Easy installation thanks to quick-connect, anti-drop screws and flexible wiring with entry slightly on the back or side of the luminaire. 5-year warranty.
- Article number: 7706847
- Suppl. article no: 4099854592850
- Ean no: 4099854592850
- Material class QT9170
Technical data
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 1260-2300 lm
- Colour temperature: 3000-4000 K
- Housing colour: Grey
- With presence detector: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Asymmetric
- Lamp type: LED not exchangeable
- Beam angle: 41-80° - Wide beam
- Degree of protection (IP), front side: IP66
- Degree of protection (IP), rear side: Other
- Length: 200 mm
- Width: 180 mm
- Height/depth: 96 mm
- Type of control gear: Electronic ballast
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Power factor: 0.9
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Colour of light: White
- Light distributor: Focal lens
- Luminaire efficacy: 115-126 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-45 °C
- Suitable for ceiling mounting: No
- Type of grid: Other
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: RG1
- Colour consistency (McAdam ellipse): SDCM3
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 14
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 20
- IFTTT support available: No
- Exchangeable control gear: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Nominal current: 47-93 mA
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- Ball-proof according to DIN 18032-3: No
- Containing product according to 2019/2020/EU: Yes
- Suitable for clamp-mounting: No
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 12
- With switch: No
- With mounting material: Yes
- Emergency power supply system: None
- REACH Date: 2025-06-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
