Schneider Electric

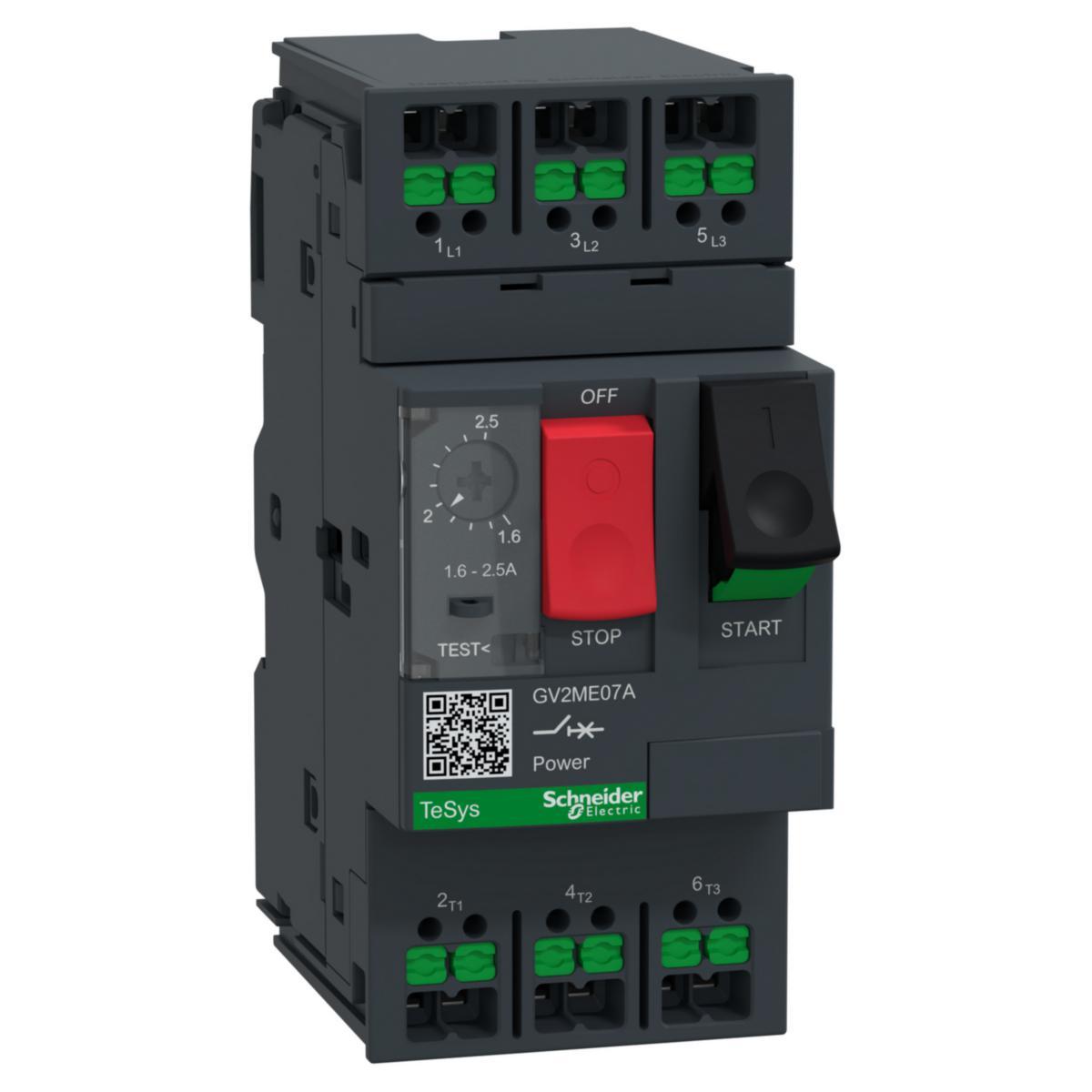

Motor protection switch GV2ME Snap-in
MOTOR CB TH-MAG 2.5A SNAP-IN
Article number: Suppl. article no:
3110850
GV2ME07A
to see price and stock
Motor protection switch GV2ME Snap-in
- Article number: 3110850
- Suppl. article no: GV2ME07A
- Ean no: 3606487541844
- Material class QO0210
Technical data
- Packagin Size: 1 PCS/20 PCS
- Type: GV2ME07A
- Overload release current setting: 1.6-2.5 A
- Adjustment range undelayed short-circuit release: 33.5 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 230-690 V
- Rated operation power at AC-3, 400 V: 0.75 kW
- Rated permanent current Iu: 2.5 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 0.37 kW
- Power loss: 2.5 W
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Other
- With thermal overload protection: Yes
- Type of control element: Push button
- Width: 45 mm
- Depth: 78.5 mm
- Height: 101 mm
